    tunnel light

    Light Tunnel series

    Source Type: SMD LED
    NOMINAL CCT: 3000k/4000k/5000k/6000k/
    Power: 50W-300W
    voltage: AC85V-180V/160-265V/50-60Hz
    Efficiency: 120-230lm/W
    CRI: 70↑
    Material: Aluminum AL6063
    Angle: typical 90°, optional 60°, 90°、120°
    Temperature: -25℃-+40℃
    IP: IP65↑
    Life: >50000H & 25℃
    Chip brand: Philips, OSRAM, Hongli, Seoul, Samsung
    Power supply: AC, solar, battery, power supply, etc.

    DOWNLOAD MORE:

    Size:Download

    Application more

    Category: Tag:

    Tunnel light

    OVERVIEW

    tunnel light are specially designed led tunnel lamp for tunnel lighting to solve the “black hole effect” or “white hole effect” caused by sudden changes in brightness when vehicles enter and exit tunnels.

    PRODUCT

    PRODUCT RANK NO. NOMINAL SIZE POWER  VOLTAGE FLUX EFFECT CRI IP TYPICAL PART NUMBER
    （CCT/k) (mm) (W) (VF/V) (lm) (LM/W)  (Ra) DEG
    T1050WVA3 TL1010 3000K 350*100*161 50 220 6000 120 80↑ IP65 30-120° 9405500000TL1010
    T1050WTA3 TL1011 4000K 350*100*161 50 220 6000 120 80↑ IP65 30-120° 9405500000TL1011
    T1050WRA3 TL1012 5000K 350*100*161 50 220 6000 120 80↑ IP65 30-120° 9405500000TL1012
    T1050WQA3 TL1013 6000K 350*100*161 50 220 6000 120 80↑ IP65 30-120° 9405500000TL1013
    T10100WVA3 TL1014 3000K 600*100*161 100 220 12000 120 80↑ IP65 30-120° 9405500000TL1014
    T10100WTA3 TL1015 4000K 600*100*161 100 220 12000 120 80↑ IP65 30-120° 9405500000TL1015
    T10100WRA3 TL1016 5000K 600*100*161 100 220 12000 120 80↑ IP65 30-120° 9405500000TL1016
    T10100WQA3 TL1017 6000K 600*100*161 100 220 12000 120 80↑ IP65 30-120° 9405500000TL1017
    T10150WVA3 TL1018 3000K 1000*100*161 150 220 18000 120 80↑ IP65 30-120° 9405500000TL1018
    T10150WTA3 TL1019 4000K 1000*100*161 150 220 18000 120 80↑ IP65 30-120° 9405500000TL1019
    T10150WRA3 TL1020 5000K 1000*100*161 150 220 18000 120 80↑ IP65 30-120° 9405500000TL1020
    T10150WQA3 TL1021 6000K 1000*100*161 150 220 18000 120 80↑ IP65 30-120° 9405500000TL1021
    T10200WVA3 TL1022 3000K 1200*100*161 200 220 24000 120 80↑ IP65 30-120° 9405500000TL1022
    T10200WTA3 TL1023 4000K 1200*100*161 200 220 24000 120 80↑ IP65 30-120° 9405500000TL1023
    T10200WRA3 TL1024 5000K 1200*100*161 200 220 24000 120 80↑ IP65 30-120° 9405500000TL1024
    T10200WQA3 TL1025 6000K 1200*100*161 200 220 24000 120 80↑ IP65 30-120° 9405500000TL1025
    T10250WVA3 TL1026 3000K 1500*100*161 250 220 30000 120 80↑ IP65 30-120° 9405500000TL1026
    T10250WTA3 TL1027 4000K 1500*100*161 250 220 30000 120 80↑ IP65 30-120° 9405500000TL1027
    T10250WRA3 TL1028 5000K 1500*100*161 250 220 30000 120 80↑ IP65 30-120° 9405500000TL1028
    T10250WQA3 TL1029 6000K 1500*100*161 250 220 30000 120 80↑ IP65 30-120° 9405500000TL1029
    T10250WVA3 TL1030 3000K 1800*100*161 300 220 42000 140 80↑ IP65 30-120° 9405500000TL1030
    T10250WTA3 TL1031 4000K 1800*100*161 300 220 42000 140 80↑ IP65 30-120° 9405500000TL1031
    T10250WRA3 TL1032 5000K 1800*100*161 300 220 42000 140 80↑ IP65 30-120° 9405500000TL1032
    T10250WQA3 TL1033 6000K 1800*100*161 300 220 42000 140 80↑ IP65 30-120° 9405500000TL1033

    FEATURES

    Light source: Tunnel lights usually use high-intensity gas discharge lamps as light sources, such as sodium lamps, metal halide lamps, and sometimes electrodeless lamps or LED lamps. In particular, LED tunnel lights, as a new type of lighting product, are gradually becoming the first choice for modern tunnel lighting.

    Light efficiency and energy saving: Use high-efficiency light sources, cooperate with different reflectors to achieve multi-purpose lighting, and soften them to avoid glare or other discomfort reactions.

    Material structure: The shell is made of high-strength and tough alloy environmentally friendly materials, and the transparent parts are reinforced tempered glass, which is dust-proof, waterproof, corrosion-resistant and rust-proof. The reflector uses imported high-purity mirror aluminum anodized material, and through precise light distribution design, it has high reflective efficiency and good light transmittance.

    Shockproof and impact-resistant: It has strong resistance to strong collision and impact, multi-channel shockproof structure and high-tech surface spraying treatment, and can work stably for a long time in high-frequency vibration and humid and high-temperature environment.


    Electrical properties

    Power supply voltage: generally 380/220V.
    Control method: Tunnel lighting often adopts intelligent dimming energy-saving system, and realizes segmented independent control through radar, video detection and real-time control technology.
    In emergency situations, the working state of the lighting system can be controlled to adjust to the full-on state of the lamp.
    Emergency lighting: Tunnel lighting system is usually equipped with EPS (emergency power supply system) to ensure continuous lighting in emergency situations, and the emergency time is not less than 2 hours.

    BENEFITS

    Efficient energy saving: LED tunnel lights adopt advanced semiconductor lighting technology, low energy consumption, and significantly reduce tunnel operation costs and energy waste.
    Uniform and comfortable light: LED light is soft and evenly illuminated, avoiding light flickering and glare, and improving the visual comfort of drivers.
    Long life: LED lamps have a life of tens of thousands of hours, reducing the trouble and cost of frequent lamp replacement.
    High safety: It has high impact resistance and shock resistance, adapts to the complex environment of the tunnel, reduces the failure rate, and improves the safety of the tunnel

    APPLICATION

    Tunnel lights are widely used in various tunnel projects, including underground tunnels and viaduct tunnels in urban traffic construction, as well as transportation projects such as subways,

    railways and highways. In addition, tunnel lights are also used in mines, underground projects and water conservancy projects to provide lighting, guidance and warning functions to ensure the safe and smooth progress of traffic and projects

    DOWNLOAD MORE:

    Application more

    Size:Download

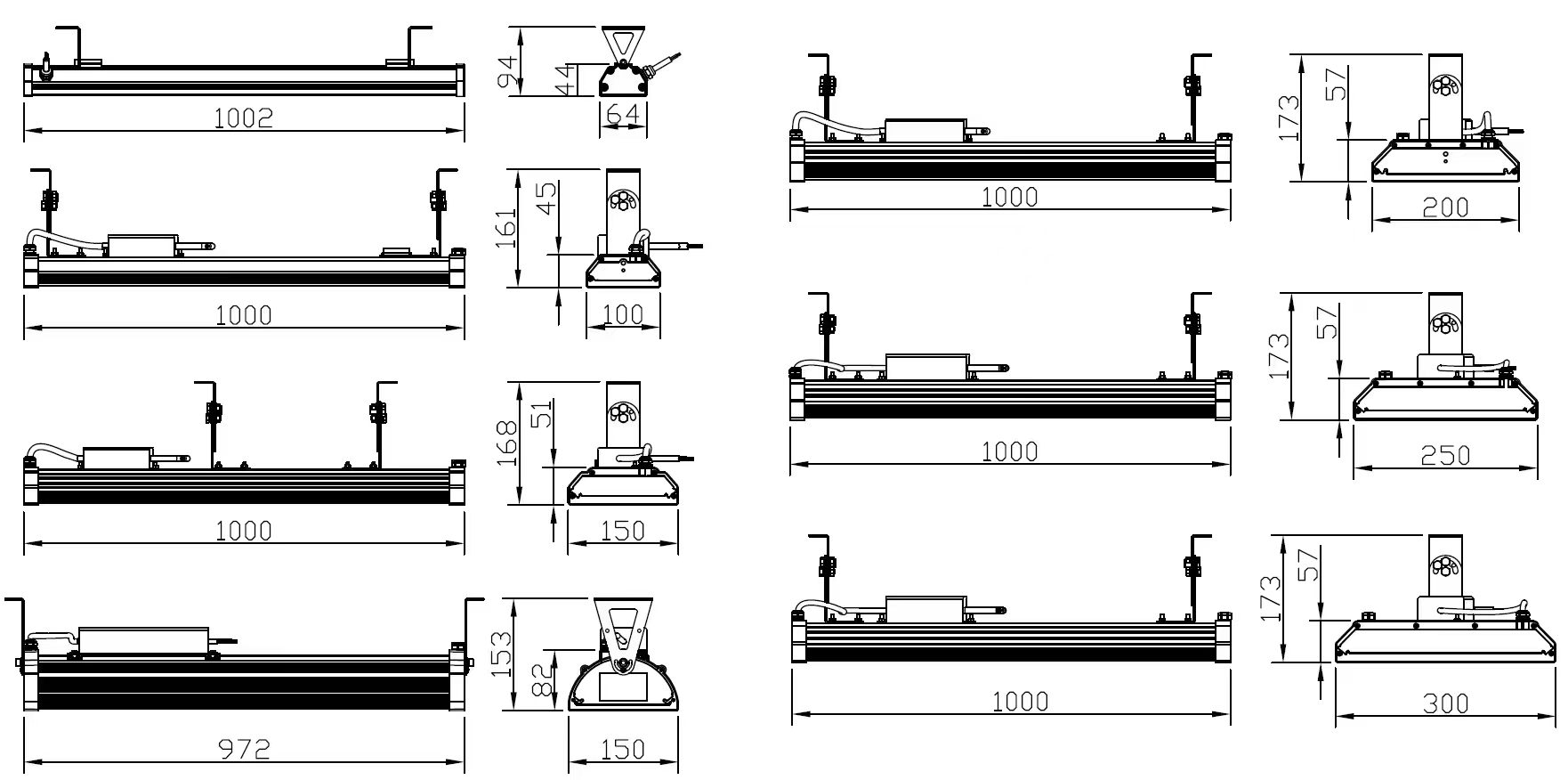

    Dimensions and specifications- tunnel light
