Plant Growth Lights & ZW Series

Size: (60-150)x75x30cm
Light Source: SMD LED
Material: 6063-T5 aerospace aluminum anodized
Color Temperature: 3000k/6000k
Wavelength: 300-730NM
Power: 50W-300W
Input Power: AC85V-180V/160-265V/
Power Factor: 50-60Hz
System Efficiency: 2.9μmol/J (@25℃)

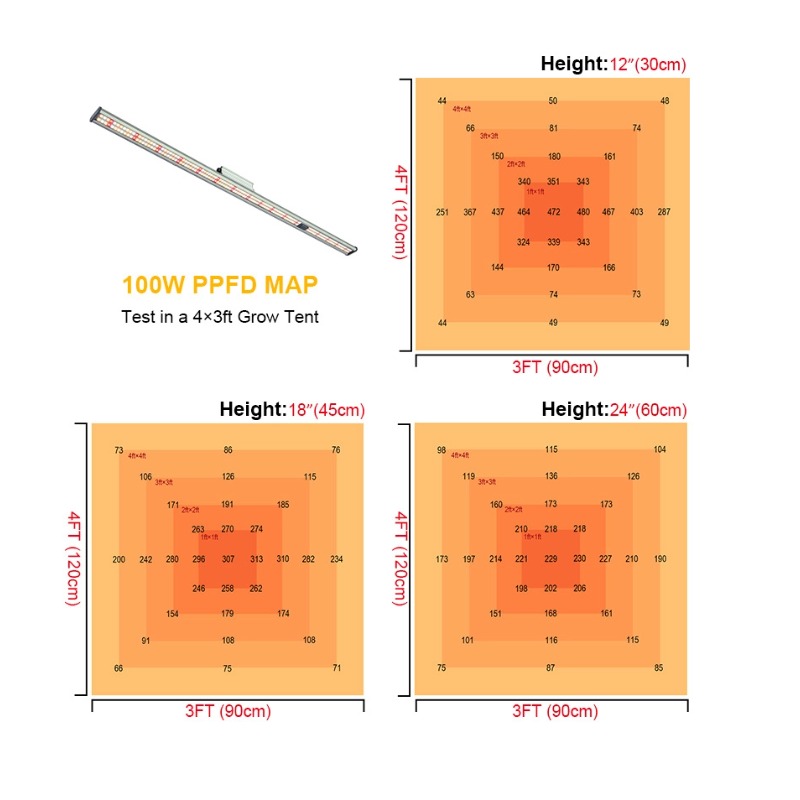

PPFD (Photosynthetic Photon Flux Density) ≥200μmol/m²/s (distance 30cm)
LED Efficiency: W 120-180lm/W / RB: 18-30lm/W
Emission Angle: Typical 120°
Working Temperature: -25℃-+40℃
Protection Level: IP65↑
Design life: >50000H & 25℃
Chip brands: Philips, OSRAM, Samsung, Hongli
Driver brands: Mean Well, Moso, Inventec, etc.
Power supply: AC, solar, battery, power supply, etc.

DOWNLOAD SIZE

Description

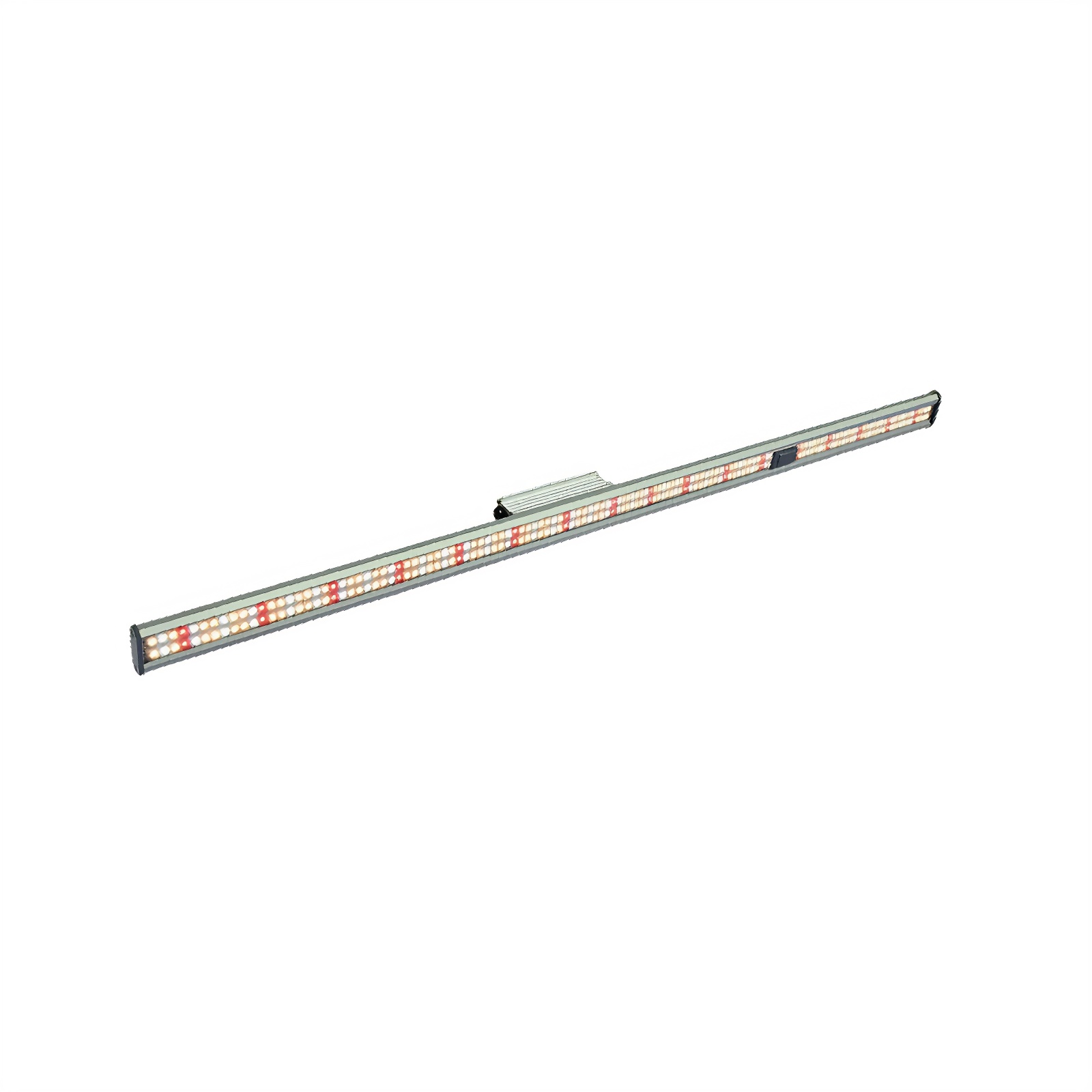

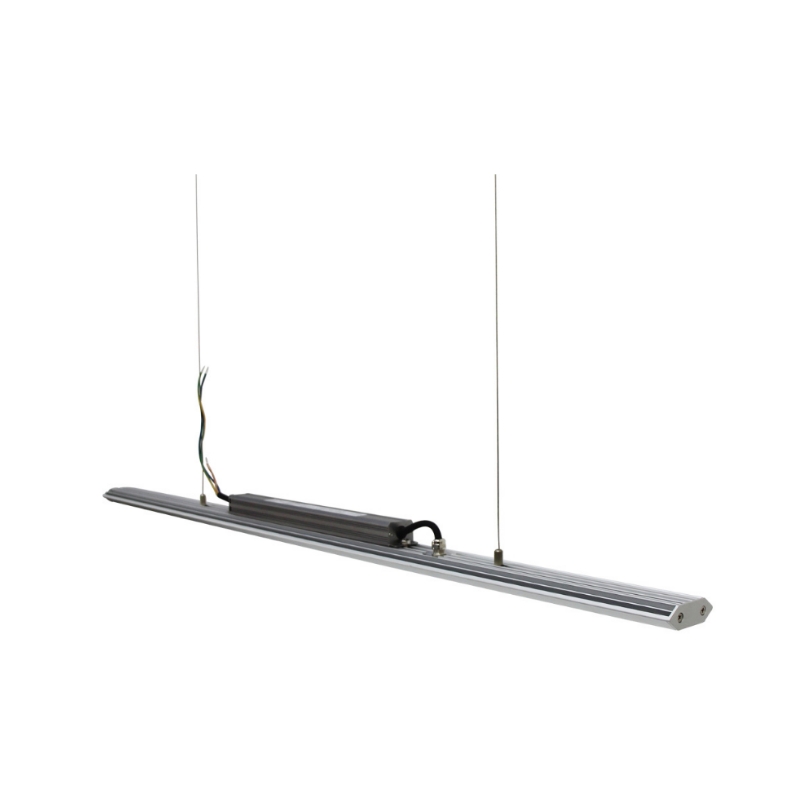

Plant Growth Lights & ZW Series

OVERVIEW

The long strip plant light & zw series is a purchase of integrated high-power design. The integrated plant growth light adopts an integrated design with a simple structure and easy installation. No additional assembly steps are required. LED long strip plant light, greenhouse special long strip plant light, led plant growth light factory

PRODUCT & Red and blue spectrum series

PRODUCT	RANK NO.	PEAK WAVELENGTH		SIZE	POWER	VOLTAGE	NOMINAL/CCT/K		TYPICAL WAVELENGTH /nm			SPECTRAL MATCHING RITIO（%)						EFFECT	PPF/W Typical	IP	TYPICAL DEG	BASE	PART NUMBER
PRODUCT	RANK NO.	MIN	MAX	(mm)	(W)	(VF/V)	MIN	MAX	MIN	MID	MAX	RED	BULE	INFRARED	Warm white	Neutral white	True white	(LM/W)	(µmol/J)	IP	TYPICAL DEG	BASE	PART NUMBER
LPG1273W60RBA1	PG1001	300	730	1200x75x30	60	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1001
LPG1273W100RBA1	PG1002	300	730	1200x75x30	100	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1002
LPG1273W150RBA1	PG1003	300	730	1200x75x30	150	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1003
LPG1573W200RBA1	PG1004	300	730	1500x75x30	200	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1004
LPG1573W250RBA1	PG1005	300	730	1500x75x30	250	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1005
LPG1573W300RBA1	PG1006	300	730	1500x75x30	300	110	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1006
LPG1273W60RBA2	PG1007	300	730	1200x75x30	60	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1007
LPG1273W100RBA2	PG1008	300	730	1200x75x30	100	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1008
LPG1273W150RBA2	PG1009	300	730	1200x75x30	150	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1009
LPG1573W200RBA2	PG1010	300	730	1500x75x30	200	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1010
LPG1573W250RBA2	PG1011	300	730	1500x75x30	250	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1011
LPG1573W300RBA2	PG1012	300	730	1500x75x30	300	220	N/A	N/A	450	660	730	60%	40%	N/A	N/A	N/A	N/A	18lm/w	2.3	65↑	135	PG7	9405500000lLPG1012

PRODUCT & Solar spectrum series

PRODUCT	RANK NO.	PEAK WAVELENGTH		SIZE	POWER	VOLTAGE	NOMINAL/CCT/K		TYPICAL WAVELENGTH /nm			SPECTRAL MATCHING RITIO（%)						EFFECT	PPF/W Typical	IP	TYPICAL DEG	BASE	PART NUMBER
PRODUCT	RANK NO.	MIN	MAX	(mm)	(W)	(VF/V)	MIN	MAX	MIN	MID	MAX	RED	BULE	INFRARED	Warm white	Neutral white	True white	(LM/W)	(µmol/J)	IP	TYPICAL DEG	BASE	PART NUMBER
LPG1273W60WWRIA1	PG1001	280	800	1200x75x30	60	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1013
LPG1273W100WWRIA1	PG1002	280	800	1200x75x30	100	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1014
LPG1273W150WWRIA1	PG1003	280	800	1200x75x30	150	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1015
LPG1573W200WWRIA1	PG1004	280	800	1500x75x30	200	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1016
LPG1573W250WWRIA1	PG1005	280	800	1500x75x30	250	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1017
LPG1573W300WWRIA1	PG1006	280	800	1500x75x30	300	110	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1018
LPG1273W60WWRIA2	PG1007	280	800	1200x75x30	60	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1019
LPG1273W100WWRIA2	PG1008	280	800	1200x75x30	100	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1020
LPG1273W150WWRIA2	PG1009	280	800	1200x75x30	150	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1021
LPG1573W200WWRIA2	PG1010	280	800	1500x75x30	200	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1022
LPG1573W250WWRIA2	PG1011	280	800	1500x75x30	250	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1023
LPG1573W300WWRIA2	PG1012	280	800	1500x75x30	300	220	3000	6000	450	660	730	5%	/	5%	60%	30%	/	130m/w	2.9	65↑	135	PG7	9405500000LPG1024

Electrical & Parameters & Performance Comparison

Electrical parameters			Performance comparison (vs traditional lamps)
project	Technical specifications	Test standards	Indicators	This product	Traditional fluorescent lamp
Input power	AC 100-277V 50/60Hz	IEC 61347-1	Light efficiency (μmol/J)	2.9	1.2
Power factor	PF≥0.95 (full load)	EN 61000-3-2	Lifespan (hours)	50,000	10,000
System efficiency	2.9μmol/J (@25℃)	LM-80-15 standard	Spectral tunability	Full-band independent control	Fixed spectrum
Drive current	Constant current 600mA±2%	IEC 62384	Heat radiation (W/m²)	18	45
Standby power consumption	≤0.5W	ENERGY STAR V2.1	Annual energy consumption (kW·h/㎡)	58.4	146
Transient voltage protection	4kV surge protection (differential mode/common mode)	IEC 61000-4-5
Safety certification	UL 8800 / EN 62471 (Photobiological Safety)

FEATURES

Full spectrum LED array: using customized LED chipset (R: 660nm ± 5nm / B: 450nm ± 5nm / FR: 730nm ± 5nm / full spectrum white),

covering PAR (photosynthetically active radiation) 380-780nm full band, PPFD (photosynthetic photon flux density) ≥ 150μmol/m²/s (distance 30cm).

Achieve 120° wide-angle uniform light distribution, spot uniformity > 90%.

Industrial grade structural design

Integrated aluminum alloy heat sink: 6063-T5 aerospace aluminum, surface anodized, thermal resistance ≤ 1.5℃/W,

Ensure that the LED junction temperature is stable below 60℃ (room temperature 25℃).

IP65 protection level: dustproof and waterproof design, suitable for high humidity environments such as greenhouses/hydroponics.

Anti-electromagnetic interference (EMC) and no flicker (PWM dimming frequency > 20kHz).

Intelligent control system

Optional 0-10V/PWM dual-mode dimming: compatible with mainstream environmental control systems (such as Heliospectra, Growlink).

Light cycle programming: supports 24-hour light recipe cycle (accuracy ±1 minute), can preset light intensity (10%-100%), spectrum (R/B/FR ratio) and light quality switching strategy.

Environmental linkage: built-in photosensitivity/temperature and humidity sensor, automatically compensates for changes in ambient light intensity (sensitivity ±5%)

APPLICATION

Vertical agricultural system

Shelf planting: a single lamp covers a planting area of 1.2m×0.6m, meeting the light requirements of dwarf crops such as lettuce/strawberry (DLI≥12mol/m²/d).

NFT hydroponic lighting: combined with red and blue spectrum (R:B=5:1), the vitamin C content of leafy vegetables is increased by 15%-20%.

Laboratory research

Light quality experiment: set a specific wavelength combination (such as FR 730nm to induce flowering) through the APP to study the effect of light signals on plant metabolism.

Light intensity gradient test: segmented control function (independent dimming every 30cm) to build a differentiated light environment comparison group.

Facility horticulture

Greenhouse lighting: automatically start 6500K cold light mode on rainy days to maintain tomato/cucumber photosynthetic rate ≥8μmol CO²/m²/s.

Tissue seedlings: 3000K warm light promotes callus differentiation and shortens the seedling cycle by 3-5 days.

Special scenarios

Medicinal plant cultivation: 730nm far-red light regulates the THC/CBD ratio of cannabis, meeting the cleanliness requirements of GMP workshops.

Polar research station: -30℃ low-temperature start-up design to ensure the year-round production of Antarctic greenhouse lettuce.

Installation and integration

DIN rail compatibility: supports rapid deployment of standard 35mm rails (optional brackets are required).

Daisy Chain cascade: up to 6 in series.

Modbus RTU protocol: RS485 interface realizes industrial Internet of Things (IIoT) integration, sampling rate 1Hz.

⚠️Precautions**

Safety distance: It is recommended to keep a distance of ≥15cm between LED lamp beads and plant canopy to prevent light inhibition effect.

Spectral taboos: Avoid long-term use of >720nm far-red light during flowering period (may cause excessive elongation of internodes).

Heat dissipation requirements: Continuous operation requires an ambient temperature of ≤40℃ and a humidity of ≤85% RH.
