LED high bay light & UFO

led high bay light | UFO High Bay Light

OVERVIEW

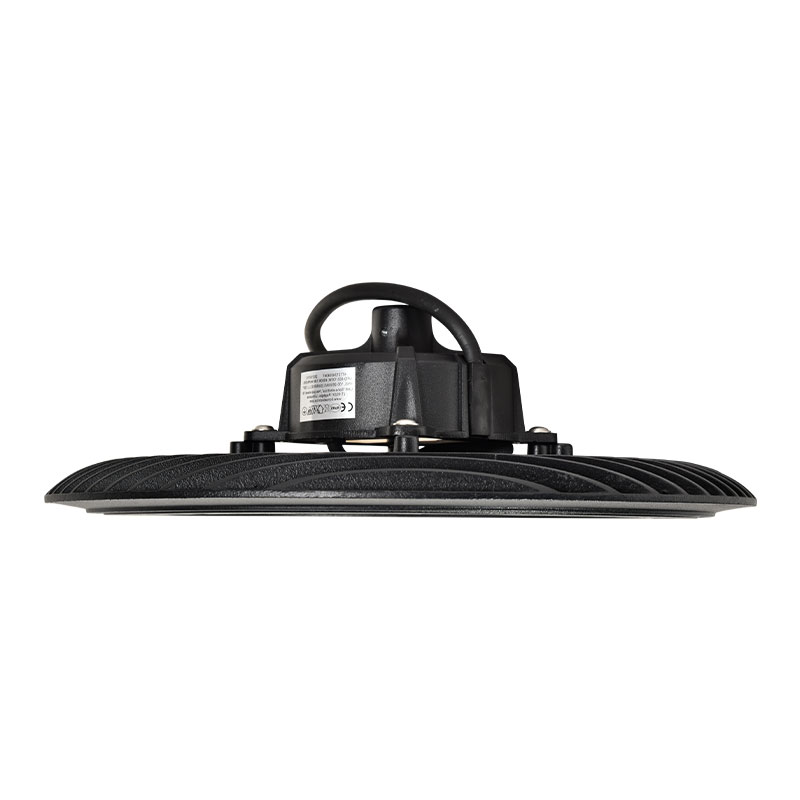

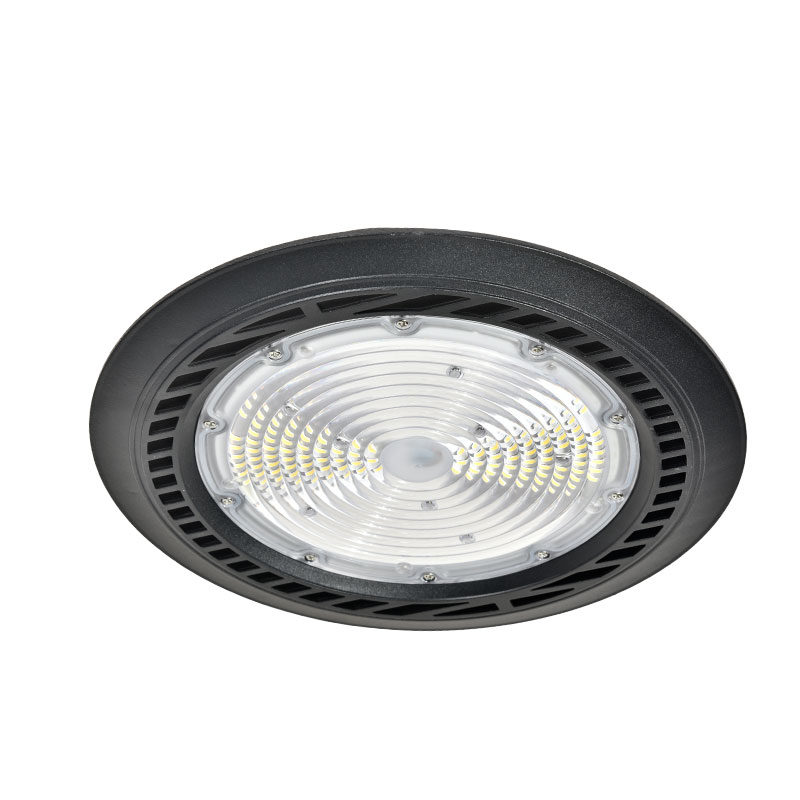

led high bay light also known as high ceiling light, is a high-energy-efficiency indoor LED lamp with a beautiful appearance that resembles a flying saucer UFO, so it is also called UFO led high bay light.

UFO led high bay light is made of magnesium aluminum alloy die-casting. It has a beautiful appearance and looks like a flying saucer. It is of high-end quality and has a very solid structure. It has good heat dissipation effect and can be IP65 waterproof. The light-emitting angle is available in 60 degrees and 120 degrees.

PRODUCT

PRODUCT	RANK NO.	NOMINAL	SIZE	POWER	VOLTAGE	FLUX	EFFECT	CRI	IP	TYPICAL	PART NUMBER
		（CCT/k)	(mm)	(W)	(VF/V)	(lm)	(LM/W)	(Ra)		DEG
HBTH2915100VA2P5	HB0101	3000K	290*150.8mm	100	220	12500	125	80↑	IK08/IP66	90	9405500000HB01
HBTH2915100TA2P5	HB0102	4000K	290*150.8mm	100	220	12500	125	80↑	IK08/IP66	90	9405500000HB02
HBTH2915100RA2P5	HB0103	5000K	290*150.8mm	100	220	12500	125	80↑	IK08/IP66	90	9405500000HB03
HBTH2915100PA2P5	HB0104	6000K	290*150.8mm	100	220	12500	125	80↑	IK08/IP66	90	9405500000HB04
HBTH3315150VA2P5	HB0105	3000K	332.7 * 152.0 mm	150	220	29700	135	80↑	IK08/IP66	90	9405500000HB05
HBTH3315150TA2P5	HB0106	4000K	332.7 * 152.0 mm	150	220	29700	135	80↑	IK08/IP66	90	9405500000HB06
HBTH3315150RA2P5	HB0107	5000K	332.7 * 152.0 mm	150	220	29700	135	80↑	IK08/IP66	90	9405500000HB07
HBTH3315150PA2P5	HB0108	6000K	332.7 * 152.0 mm	150	220	29700	135	80↑	IK08/IP66	90	9405500000HB08
HBTH3717200VA2P5	HB0109	3000K	377.1 * 165.0 mm	200	220	30800	140	80↑	IK08/IP66	90	9405500000HB09
HBTH3717200TA2P5	HB0110	4000K	377.1 * 165.0 mm	200	220	30800	140	80↑	IK08/IP66	90	9405500000HB10
HBTH3717200RA2P5	HB0111	5000K	377.1 * 165.0 mm	200	220	30800	140	80↑	IK08/IP66	90	9405500000HB11
HBTH3717200PA2P5	HB0112	6000K	377.1 * 165.0 mm	200	220	30800	140	80↑	IK08/IP66	90	9405500000HB12
HBTH2915100VA1P5	HB0113	3000K	290*150.8mm	100	110	12500	125	80↑	IK08/IP66	90	9405500000HB13
HBTH2915100TA1P5	HB0114	4000K	290*150.8mm	100	110	12500	125	80↑	IK08/IP66	90	9405500000HB14
HBTH2915100RA1P5	HB0115	5000K	290*150.8mm	100	110	12500	125	80↑	IK08/IP66	90	9405500000HB15
HBTH2915100PA1P5	HB0116	6000K	290*150.8mm	100	110	12500	125	80↑	IK08/IP66	90	9405500000HB16
HBTH3315150VA1P5	HB0117	3000K	332.7 * 152.0 mm	150	110	14850	135	80↑	IK08/IP66	90	9405500000HB17
HBTH3315150TA1P5	HB0118	4000K	332.7 * 152.0 mm	150	110	14850	135	80↑	IK08/IP66	90	9405500000HB18
HBTH3315150RA1P5	HB0119	5000K	332.7 * 152.0 mm	150	110	14850	135	80↑	IK08/IP66	90	9405500000HB19
HBTH3315150PA1P5	HB0120	6000K	332.7 * 152.0 mm	150	110	14850	135	80↑	IK08/IP66	90	9405500000HB20
HBTH3717200VA1P5	HB0121	3000K	377.1 * 165.0 mm	200	110	15400	140	80↑	IK08/IP66	90	9405500000HB21
HBTH3717200TA1P5	HB0122	4000K	377.1 * 165.0 mm	200	110	15400	140	80↑	IK08/IP66	90	9405500000HB22
HBTH3717200RA1P5	HB0123	5000K	377.1 * 165.0 mm	200	110	15400	140	80↑	IK08/IP66	90	9405500000HB23
HBTH3717200PA1P5	HB0124	6000K	377.1 * 165.0 mm	200	110	15400	140	80↑	IK08/IP66	90	9405500000HB24

FEATURES

The lamp body is made of 1060 pure aluminum stamping and cold forging. It has a beautiful appearance and resembles a flying saucer UFO. It is of high-end quality and has a very solid structure;

Unique fin heat dissipation design makes the lamp lighter, and the light source and radiator are perfectly combined to effectively ensure the life of the light source and power supply;

Highly transparent optical PC cover, which emits uniform light, suitable for human eyes, has a light output efficiency of 95%, no glare, and high uniformity;

Using multiple high-power 3030LED\high-power 5050LED modules as the light source, it has high thermal conductivity, small light attenuation, pure light color, and no ghosting;

High-power constant current integrated drive power supply, wide voltage input AC90-305V, power factor >0.95, small harmonics;

Green, environmentally friendly and pollution-free, does not contain lead, mercury and other polluting elements, and does not cause any pollution to the environment;

It has excellent decorative effect, adopts special surface treatment technology, can choose from a variety of colors for appearance, is simple to install, easy to disassemble, and has a wide range of applications.

BENEFITS

Compared with traditional industrial and mining lamps, LED high bay light has great advantages:

led high bay light CRI high RA>70

LED high bay light has high luminous efficiency and is more energy-saving. The equivalent of 100W LED industrial and mining lamp can replace the traditional 250W traditional industrial and mining lamp.

Traditional light sources have the disadvantage of high lamp temperature, which can reach 200-300 degrees. LED itself is a cold light source, the lamp temperature is low, safer, and is a cold drive.

In the continuous innovation of led high bay light, the latest fin-type radiator industrial and mining lamp has a more reasonable radiator design, which greatly reduces the weight of the industrial and mining lamp, so that the overall weight of the 80W LED industrial and mining lamp is reduced to less than 4KG, and can Solve the heat dissipation problem of 80-300W LED industrial and mining lamps.

APPLICATION

led high bay light is suitable for lighting in shipyards, mines, workshops, factories, warehouses, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasiums and other high halls. Recommended installation height: 7-15 meters
