Floodlight & EMG module series

Floodlight & EMG module series

OVERVIEW

Floodlight EMG module series lamps with higher illumination than the surrounding environment, also known as spotlights. Typically, it can be aimed in any direction,

has a structure that is not affected by weather conditions, and can be spliced.

PRODUCT

PRODUCT	RANK NO.	NOMINAL	SIZE	POWER	VOLTAGE	FLUX	EFFECT	CRI	IP	TYPICAL	PART NUMBER
		（CCT/k)	(mm)	(W)	(VF/V)	(lm)	(LM/W)	(Ra)		DEG
FSHEGM120VA2	HMLEGMA01	3000K	309*116*190	120	220	14400	120	80↑	IP65	90°	9405500000FL031
FSHEGM120TA2	HMLEGMA02	4000K	309*116*190	120	220	14400	120	80↑	IP65	90°	9405500000FL032
FSHEGM120RA2	HMLEGMA03	5000K	309*116*190	120	220	14400	120	80↑	IP65	90°	9405500000FL033
FSHEGM120PA2	HMLEGMA04	6000K	309*116*190	120	220	14400	120	80↑	IP65	90°	9405500000FL034
FSHEGM240VA2	HMLEGMA05	3000K	362*132*343	240	220	28800	120	80↑	IP65	90°	9405500000FL035
FSHEGM240TA2	HMLEGMA06	4000K	362*132*343	240	220	28800	120	80↑	IP65	90°	9405500000FL036
FSHEGM240RA2	HMLEGMA07	5000K	362*132*343	240	220	28800	120	80↑	IP65	90°	9405500000FL037
FSHEGM240PA2	HMLEGMA08	6000K	362*132*343	240	220	28800	120	80↑	IP65	90°	9405500000FL038
FSHEGM360VA2	HMLEGMA09	3000K	362*132*475	360	220	43200	120	80↑	IP65	90°	9405500000FL039
FSHEGM360TA2	HMLEGMA10	4000K	362*132*475	360	220	43200	120	80↑	IP65	90°	9405500000FL040
FSHEGM360RA2	HMLEGMA11	5000K	362*132*475	360	220	43200	120	80↑	IP65	90°	9405500000FL041
FSHEGM360PA2	HMLEGMA12	6000K	362*132*475	360	220	43200	120	80↑	IP65	90°	9405500000FL042
FSHEGM480VA2	HMLEGMA13	3000K	362*132*597	480	220	57600	120	80↑	IP65	90°	9405500000FL043
FSHEGM480TA2	HMLEGMA14	4000K	362*132*597	480	220	57600	120	80↑	IP65	90°	9405500000FL044
FSHEGM480RA2	HMLEGMA15	5000K	362*132*597	480	220	57600	120	80↑	IP65	90°	9405500000FL045
FSHEGM480PA2	HMLEGMA16	6000K	362*132*597	480	220	57600	120	80↑	IP65	90°	9405500000FL046
FSHEGM720VA2	HMLEGMA17	3000K	362*132*861	720	220	86400	120	80↑	IP65	90°	9405500000FL047
FSHEGM720TA2	HMLEGMA18	4000K	362*132*861	720	220	86400	120	80↑	IP65	90°	9405500000FL048
FSHEGM720RA2	HMLEGMA19	5000K	362*132*861	720	220	86400	120	80↑	IP65	90°	9405500000FL049
FSHEGM720PA2	HMLEGMA20	6000K	362*132*861	720	220	86400	120	80↑	IP65	90°	9405500000FL050
FSHEGMB480VA2	HMLEGMB21	3000K	649*133*343	480	220	67200	140	80↑	IP65	90°	9405500000FL051
FSHEGMB480TA2	HMLEGMB22	4000K	649*133*343	480	220	67200	140	80↑	IP65	90°	9405500000FL052
FSHEGMB480RA2	HMLEGMB23	5000K	649*133*343	480	220	67200	140	80↑	IP65	90°	9405500000FL053
FSHEGMB480PA2	HMLEGMB24	6000K	649*133*343	480	220	67200	140	80↑	IP65	90°	9405500000FL054
FSHEGMB720VA2	HMLEGMB25	3000K	649*133*475	720	220	100800	140	80↑	IP65	90°	9405500000FL055
FSHEGMB720TA2	HMLEGMB26	4000K	649*133*475	720	220	100800	140	80↑	IP65	90°	9405500000FL056
FSHEGMB720RA2	HMLEGMB27	5000K	649*133*475	720	220	100800	140	80↑	IP65	90°	9405500000FL057
FSHEGMB720PA2	HMLEGMB28	6000K	649*133*475	720	220	100800	140	80↑	IP65	90°	9405500000FL058
FSHEGMB960VA2	HMLEGMB29	3000K	649*133*597	960	220	134400	140	80↑	IP65	90°	9405500000FL059
FSHEGMB960TA2	HMLEGMB30	4000K	649*133*597	960	220	134400	140	80↑	IP65	90°	9405500000FL060
FSHEGMB960RA2	HMLEGMB31	5000K	649*133*597	960	220	134400	140	80↑	IP65	90°	9405500000FL061
FSHEGMB960PA2	HMLEGMB32	6000K	649*133*597	960	220	134400	140	80↑	IP65	90°	9405500000FL062
FSHEGMB1200VA2	HMLEGMB33	3000K	649*133*729	1200	220	168000	140	80↑	IP65	90°	9405500000FL063
FSHEGMB1200TA2	HMLEGMB34	4000K	649*133*729	1200	220	168000	140	80↑	IP65	90°	9405500000FL064
FSHEGMB1200RA2	HMLEGMB35	5000K	649*133*729	1200	220	168000	140	80↑	IP65	90°	9405500000FL065
FSHEGMB1200PA2	HMLEGMB36	6000K	649*133*729	1200	220	168000	140	80↑	IP65	90°	9405500000FL066
FSHEGMB1500VA2	HMLEGMB37	3000K	649*133*861	1500	220	210000	140	80↑	IP65	90°	9405500000FL067
FSHEGMB1500TA2	HMLEGMB38	4000K	649*133*861	1500	220	210000	140	80↑	IP65	90°	9405500000FL068
FSHEGMB1500RA2	HMLEGMB39	5000K	649*133*861	1500	220	210000	140	80↑	IP65	90°	9405500000FL069
FSHEGMB1500PA2	HMLEGMB40	6000K	649*133*861	1500	220	210000	140	80↑	IP65	90°	9405500000FL070

FEATURES

The power range of floodlights usually ranges from 120 watts to 1500 watts, and the appropriate power can be selected according to different lighting needs.

The brightness of floodlights usually ranges from 1,000 lumens to 50,000 lumens. The higher the brightness, the better the lighting effect.

The common color temperature range of floodlights ranges from 3000K to 6500K. Lower color temperatures (3000K-4000K) usually present warm yellow light,

suitable for creating a warm atmosphere; higher color temperatures (5000K-6500K) present cool white light, suitable for providing brighter lighting effects.

BENEFITS

Protection level: Usually waterproof and dustproof. Common protection levels include IP65, IP66, etc.

These ratings ensure the luminaire’s durability and reliability in outdoor environments.

The material shell is usually made of high-strength aluminum alloy material, which has good heat dissipation performance and corrosion resistance, ensuring the long life and stability of the lamp.

Different light control methods can be selected according to needs, such as manual dimming, wireless remote control, intelligent induction, etc., to achieve flexible control and energy-saving effects of lamps.

APPLICATION

Architectural lighting: It can be used to illuminate building exterior walls, billboards, signs, etc., providing good lighting effects at night.

Venue lighting: Suitable for lighting in large venues such as sports venues and performance venues, providing high-brightness and uniform illumination.

Garage lighting: used for lighting indoor and outdoor areas such as garages and parking lots to provide a safe and comfortable lighting environment.

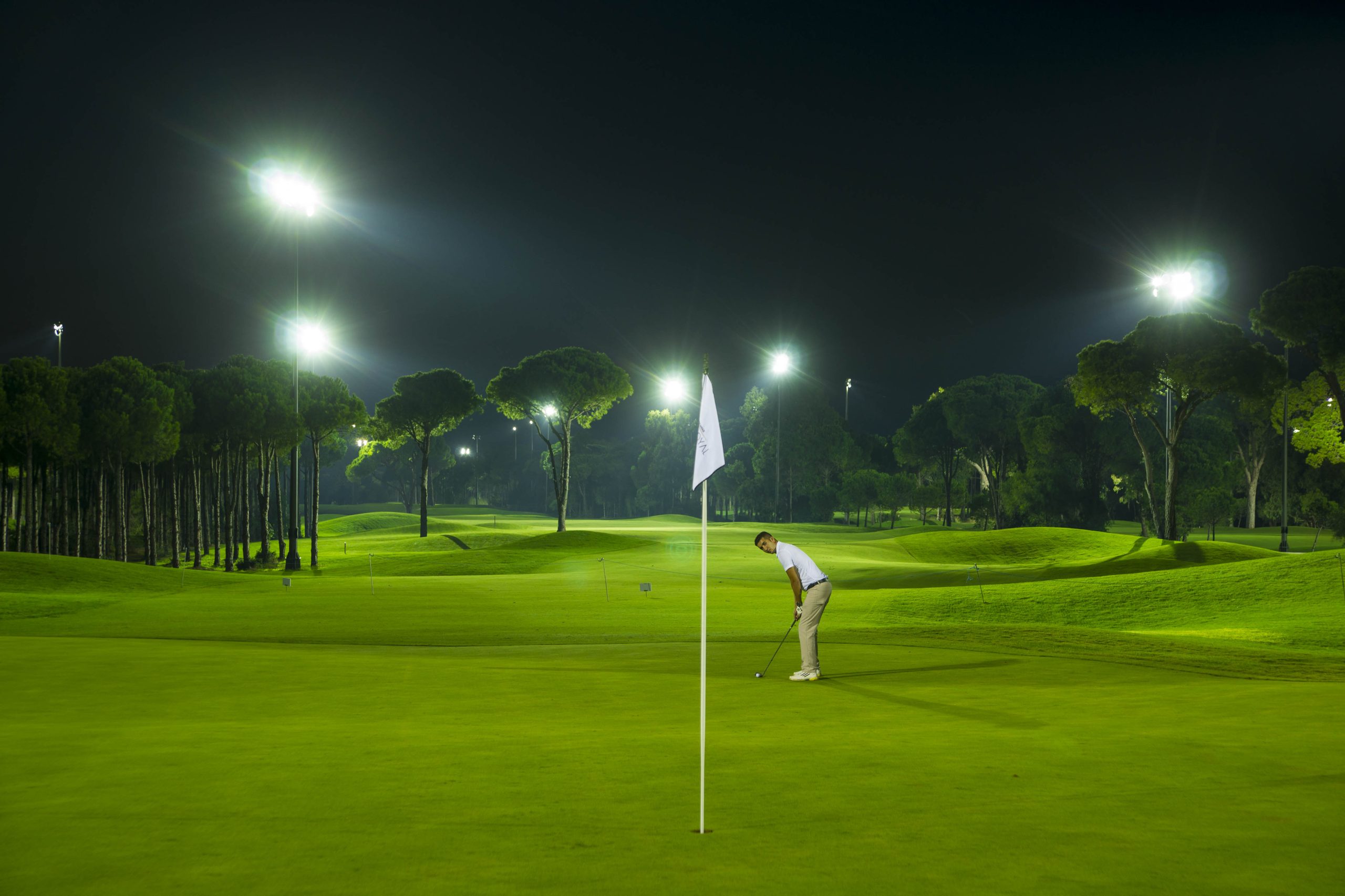

Garden landscape: Can be used to illuminate outdoor landscape areas such as parks, courtyards, flower beds, etc., to enhance the aesthetic effect at night.

Security lighting: Can be used for lighting surveillance cameras, providing high-brightness, clear images to enhance security.

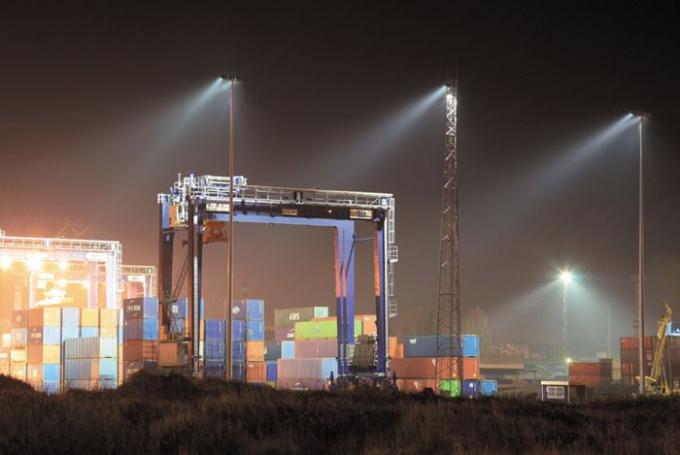

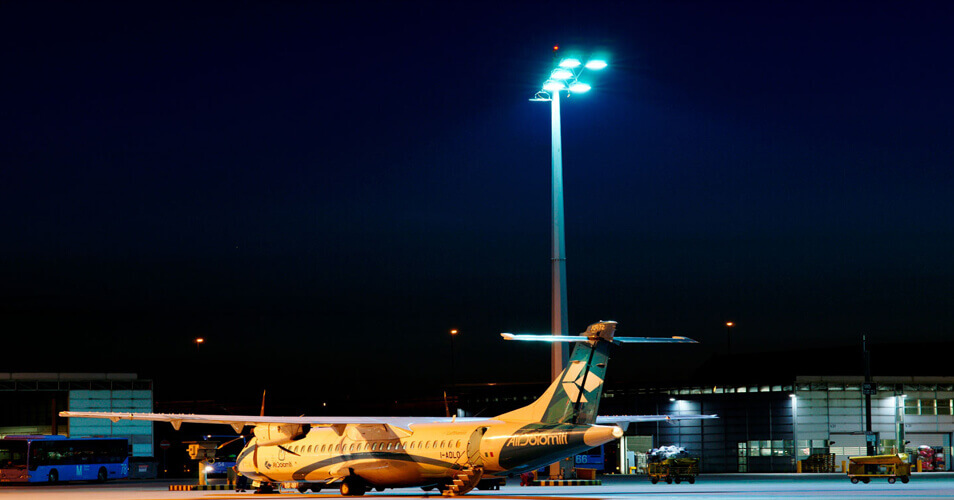

Typical applications include high pole lighting, stadium lighting, road lighting, and industrial lighting
