Emergency Ceiling light
OVERVIEW

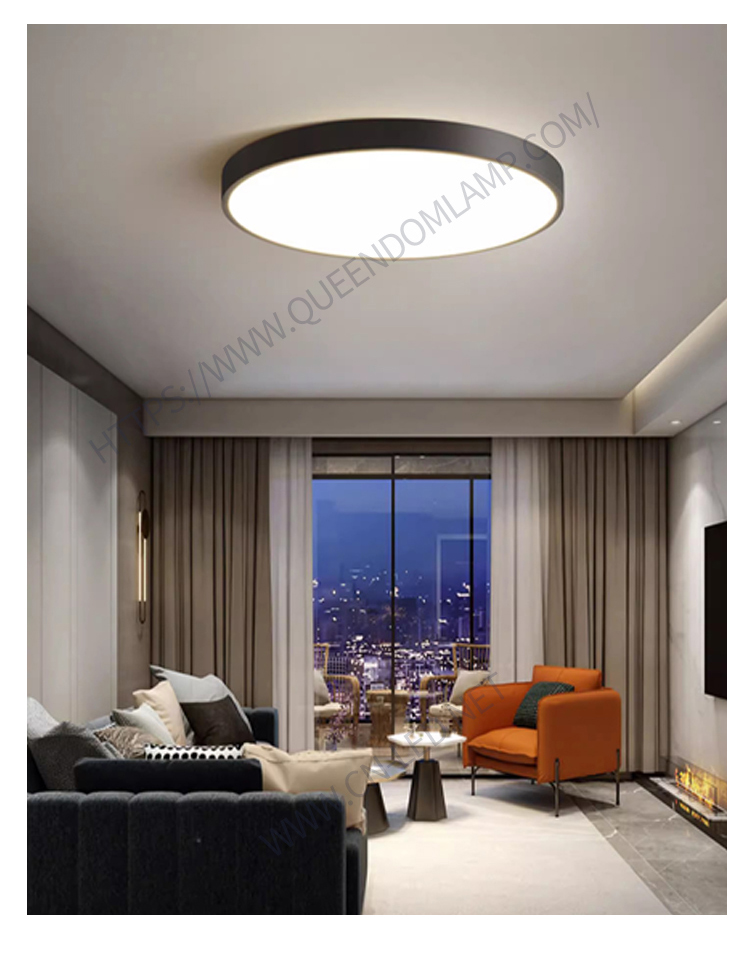

Emergency Ceiling Light is a lamp specially designed for emergency lighting, usually installed on the ceiling to provide necessary lighting in an emergency.
Emergency ceiling lights are important safety equipment that can automatically start when normal lighting fails, providing sufficient lighting for emergency operations such as personnel evacuation and fire rescue.
PRODUCT
Product performance of Queendom emergency light at test current Tj=25°C
PRODUCT | RANK NO. | NOMINAL λd(CCT) | PRODUCT SIZE (mm) | POWER(W) | VOLTAGE (VF/V) | FLUX (lm) | EFFECT (LM/W) | CRI (Ra) | TYPICAL DEG | EMERGENCY TIME | CHARGING TIME | PART NUMBER | |
LED POWER | EMERGENCY POWER | ||||||||||||
ECTS25050S118VA2 | ESL0301 | 3000K | 250*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL031 |
ECTS25050S118TA2 | ESL0302 | 4000K | 250*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL032 |
ECTS25050S118RA2 | ESL0303 | 5000K | 250*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL033 |
ECTS25050S118PA2 | ESL0304 | 6000K | 250*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL034 |
ECTS25050S120VA2 | ESL0305 | 3000K | 250*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL035 |
ECTS25050S120TA2 | ESL0306 | 4000K | 250*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL036 |
ECTS25050S120RA2 | ESL0307 | 5000K | 250*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL037 |
ECTS25050S120PA2 | ESL0308 | 6000K | 250*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL038 |
ECTS25050S124VA2 | ESL0309 | 3000K | 250*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL039 |
ECTS25050S124TA2 | ESL0310 | 4000K | 250*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL040 |
ECTS25050S124RA2 | ESL0311 | 5000K | 250*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL041 |
ECTS25050S124PA2 | ESL0312 | 6000K | 250*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL042 |
ECTS25050S130VA2 | ESL0313 | 3000K | 250*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL043 |
ECTS25050S130TA2 | ESL0314 | 4000K | 250*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL044 |
ECTS25050S130RA2 | ESL0315 | 5000K | 250*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL045 |
ECTS25050S130PA2 | ESL0316 | 6000K | 250*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL046 |
ECTS30050S130VA2 | ESL0317 | 3000K | 300*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL047 |
ECTS30050S118TA2 | ESL0318 | 4000K | 300*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL048 |
ECTS30050S118RA2 | ESL0319 | 5000K | 300*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL049 |
ECTS30050S118PA2 | ESL0320 | 6000K | 300*50mm | 18 | 3±1 W | 110/220 | 1900 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL050 |
ECTS30050S120VA2 | ESL0321 | 3000K | 300*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL051 |
ECTS30050S120TA2 | ESL0322 | 4000K | 300*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL052 |
ECTS30050S120RA2 | ESL0323 | 5000K | 300*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL053 |
ECTS30050S120PA2 | ESL0324 | 6000K | 300*50mm | 20 | 3±1 W | 110/220 | 2100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL054 |
ECTS30050S124VA2 | ESL0325 | 3000K | 300*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL055 |
ECTS30050S124TA2 | ESL0326 | 4000K | 300*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL056 |
ECTS30050S124RA2 | ESL0327 | 5000K | 300*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL057 |
ECTS30050S124PA2 | ESL0328 | 6000K | 300*50mm | 24 | 3±1 W | 110/220 | 2500 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL058 |
ECTS30050S130VA2 | ESL0329 | 3000K | 300*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL059 |
ECTS30050S130TA2 | ESL0330 | 4000K | 300*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL060 |
ECTS30050S130RA2 | ESL0331 | 5000K | 300*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL061 |
ECTS30050S130PA2 | ESL0332 | 6000K | 300*50mm | 30 | 3±1 W | 110/220 | 3000 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL062 |
ECTS37050S136VA2 | ESL0333 | 3000K | 370*50mm | 36 | 3±1 W | 110/220 | 3700 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL063 |
ECTS37050S136TA2 | ESL0334 | 4000K | 370*50mm | 36 | 3±1 W | 110/220 | 3700 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL064 |
ECTS37050S136RA2 | ESL0335 | 5000K | 370*50mm | 36 | 3±1 W | 110/220 | 3700 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL065 |
ECTS37050S140PA2 | ESL0336 | 6000K | 370*50mm | 36 | 3±1 W | 110/220 | 3700 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL066 |
ECTS37050S140VA2 | ESL0337 | 3000K | 370*50mm | 40 | 3±1 W | 110/220 | 4100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL067 |
ECTS37050S140TA2 | ESL0338 | 4000K | 370*50mm | 40 | 3±1 W | 110/220 | 4100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL068 |
ECTS37050S140RA2 | ESL0339 | 5000K | 370*50mm | 40 | 3±1 W | 110/220 | 4100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL069 |
ECTS37050S140PA2 | ESL0340 | 6000K | 370*50mm | 40 | 3±1 W | 110/220 | 4100 | 100-120LM | 80↑ | 130 | ≥180min | ≥12h | 9405500000ESL070 |

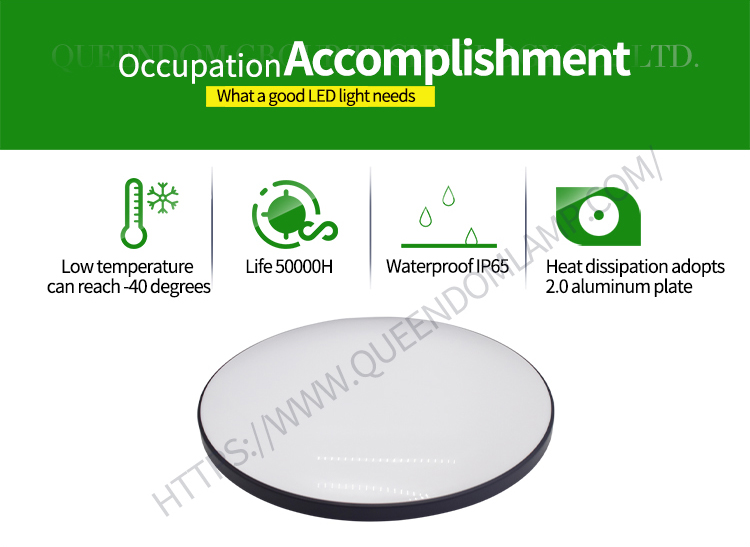

FEATURES
Automatic switching: The emergency ceiling light has an automatic detection function and can quickly switch to emergency lighting mode when the main power supply is interrupted.
Durable: Using high-quality LED light sources and batteries to ensure stable operation for a long time and provide long-lasting emergency lighting.
Safe and reliable: The lamp housing is designed to be fireproof, waterproof, and dustproof, and can work normally in harsh environments to ensure personnel safety.

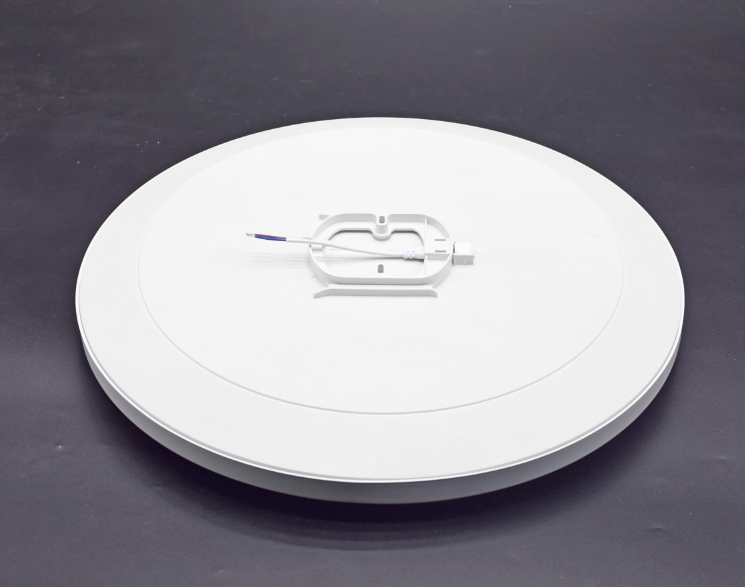

Easy to install and maintain: Emergency ceiling lights are usually designed with simple installation interfaces for quick and easy installation. At the same time, its maintenance is relatively simple, reducing usage costs.
BENEFITS
Quick response: Emergency panel lights can be activated in a very short time to provide timely lighting for evacuation and rescue in emergencies.
Energy saving and environmental protection: Using LED light source, it not only has high brightness, but is also energy-saving and environmentally friendly, reducing energy consumption.
Easy maintenance: The emergency panel light has a simple structural design, easy maintenance, and reduced usage costs.
Safe and reliable: In emergencies such as fires, emergency panel lights can maintain stable operation and provide key lighting for personnel evacuation.
APPLICATION
Emergency ceiling lights are widely used in shopping malls, hospitals, schools, office buildings, hotels, factories and other places. In these places, emergency ceiling lights are usually combined with normal lighting systems and can automatically start to provide emergency lighting when normal lighting fails. In addition, emergency ceiling lights are often used in key areas such as corridors, stairwells, and safety exits to provide critical lighting support for personnel evacuation.
It is widely used in public buildings, commercial places, industrial facilities, etc. to ensure that people can evacuate safely and orderly in the event of fire, power failure or other emergencies.
