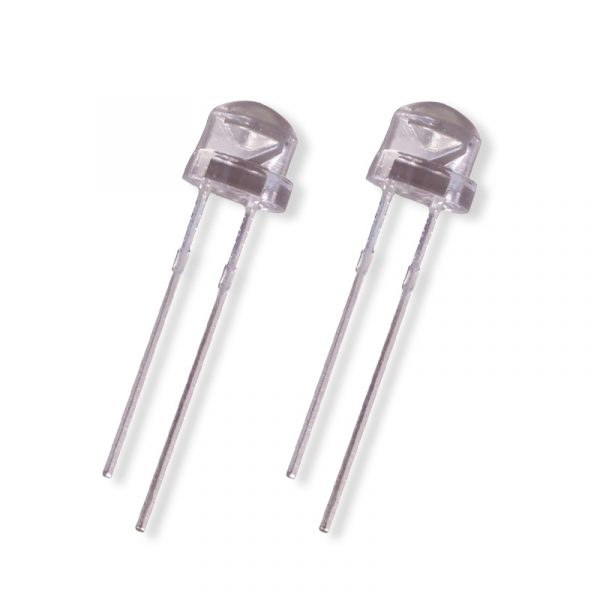

The image shows Straw Hat low volts LED of China QUEENDOM Company.

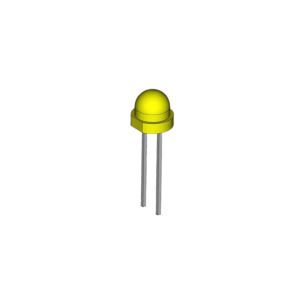

5mm Straw Hat LED

Size: 5×4.7mm
Power: 0.06W-0.2W
Voltage: 1.8-3.4V
Current: 20-60mA
Color: red, orange, yellow, green, blue, purple
CCT: 2200K-50000K etc. CRI: 70 ↑
Angle: 120
Operating temperature: -20°C to +85°C
RoHS. EN62471. REACH.CE

Categories: Straw Hat LED, Through hole LED

Description

5mm Straw Hat LED

OVERVIEW

5mm Straw Hat LED is a common Straw Hat LEDs. 5mm led light features and advantages are very popular in applications. It has a straw hat shape and an angle of up to 130 degrees.

PERFORMANCE

Table 1 Absolute maximum ratings for QUEENDOM 5mm Straw Hat LED Color Line

PERFORMANCE

Parameter	Symbol	Rating	Units
Continuous Forward Current	IF	30/60	mA
Peak Forward Current	IFP	180	mA
Reverse Voltage	VR	5	V
Operating Temperature	Topr	-40 ~ +85	℃
Storage Temperature	Tstg	-40 ~ +85	℃
Soldering Temperature	Tsol	260	℃
Power Dissipation at(or below) 25℃Free Air Temperature	Pd	60 \| 200	mW

PRODUCT

Table 2 Product performance of QUEENDOM 5mm Straw Hat LED Colors at 20mA, Tj=25ºC

Product No.

Emitted Color

Power/W

Wavelenght(nm)

IF(mA) TEST

Φe(MCD/LM)

CRI

VF (V) Typ.

Reverse current（µA）

Viewing Angle 2Ө 1/2

Lens Type

Flange with flange

Part No.

J5R302C

0.06W

620-630

300-1200

1.8-2.2

≤10

120±5°

Clear

8541401000THLS01

J5O302C

0.06W

600-610

300-1200

1.8-2.2

≤10

120±5°

Clear

8541401000THLS02

J5Y302C

0.06W

585-595

300-1200

1.8-2.2

≤10

120±5°

Clear

8541401000THLS03

J5G302C

0.06W

510-530

900-1600

3.2-3.6

≤10

120±5°

Clear

8541401000THLS04

J5B302C

0.06W

460-470

400-1200

3.2-3.6

≤10

120±5°

Clear

8541401000THLS05

J5W302C

Warm White

0.06W

2500-4000

1100-2500

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS06

J5W302C

Positive white

0.06W

5000-8000

1200-2300

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS07

J5W302C

Cool white

0.06W

9000-20000

1200-2300

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS08

J5R102D

0.06W

620-630

60-260

1.8-2.2

≤10

120±5°

Red Diffused

8541401000THLS09

J5O102D

0.06W

600-610

20-200

1.8-2.2

≤10

120±5°

Orange Diffused

8541401000THLS10

J5Y102D

0.06W

585-595

40-300

1.8-2.2

≤10

120±5°

Yellow Diffused

8541401000THLS11

J5G102D

0.06W

510-530

40-200

3.2-3.6

≤10

120±5°

Green Diffused

8541401000THLS12

J5B102D

0.06W

460-470

400-1200

3.2-3.6

≤10

120±5°

Blue Diffused

8541401000THLS13

J5W102D

Warm White

0.06W

2500-4000

1100-2500

>Ra80

3.2-3.6

≤10

120±5°

White Diffused

8541401000THLS14

J5W102D

Positive white

0.06W

5000-8000

1200-2300

>Ra80

3.2-3.6

≤10

120±5°

White Diffused

8541401000THLS15

J5W102D

Cool white

0.06W

9000-20000

1200-2300

>Ra80

3.2-3.6

≤10

120±5°

White Diffused

8541401000THLS16

Straw Hat led | 5mm mid power

Table 3 Product performance of QUEENDOM 5mm Straw Hat LED Colors at 60mA, Tj=25ºC

Product No.

Emitted Color

Power/W

Wavelenght(nm)

IF(mA) TEST

Φe(MCD/LM)

CRI

VF (V) Typ.

Reverse current（µA）

Viewing Angle 2Ө 1/2

Lens Type

Flange with flange

Part No.

J5R302C

0.2w

620-630

4-8

1.8-2.2

≤10

120±5°

Clear

8541401000THLS17

J5O302C

0.2w

600-610

3-7

1.8-2.2

≤10

120±5°

Clear

8541401000THLS18

J5Y302C

0.2w

585-595

3-7

1.8-2.2

≤10

120±5°

Clear

8541401000THLS19

J5G302C

0.2w

510-530

9-14

3.2-3.6

≤10

120±5°

Clear

8541401000THLS20

J5B302C

0.2w

460-470

3-6

3.2-3.6

≤10

120±5°

Clear

8541401000THLS21

J5W302C

Warm White

0.2w

2500-4000

8-11

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS22

J5W302C

Positive white

0.2w

5000-8000

9-14

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS23

J5W302C

Cool white

0.2w

9000-20000

9-14

>Ra80

3.2-3.6

≤10

120±5°

Clear

8541401000THLS24

FEATURES

Package form: Through-hole DIP package

Main chips: CREE, Osram, Epistar, Sanan, chip materials such as gallium arsenide (GaAs), sapphire (Al2O3), etc.

Chip range: size 8*8mil -10*30mil

Package wires: The leads are made of high-purity 99.99% gold wire materials, such as gold (Au) or copper (Cu), to ensure good electrical conductivity and reliable connection.

Bracket material: silver-plated iron or copper alloy

Encapsulation glue: epoxy resin

Display Index: Available in 70CRI, 80CRI and 90CRI

Light-emitting method: single-color light-emitting, double-color light-emitting, RGB three-color, etc.

Colloid color: colored matte, colorless matte, colored transparent, colorless transparent

Compatible with multiple voltage configurations: with multiple voltage configurations of 3V, 6V, 12V and AC welding process standards, compatible with low-cost and high-efficiency drivers

BENEFITS

Good color uniformity: Colored light adopts 2.5nm binning structure, warm white light 200k/PIN, and pure white light 500k/PIN, which ensures excellent color uniformity.

Able to produce bright and uniform light with high visibility, suitable for long-distance observation.

Low power consumption, can save energy and extend battery life.

Long service life, which can reach tens of thousands of hours, reducing replacement and maintenance costs. 4. Small in size, it can be flexibly used in various compact spaces and suitable for various small electronic products.
