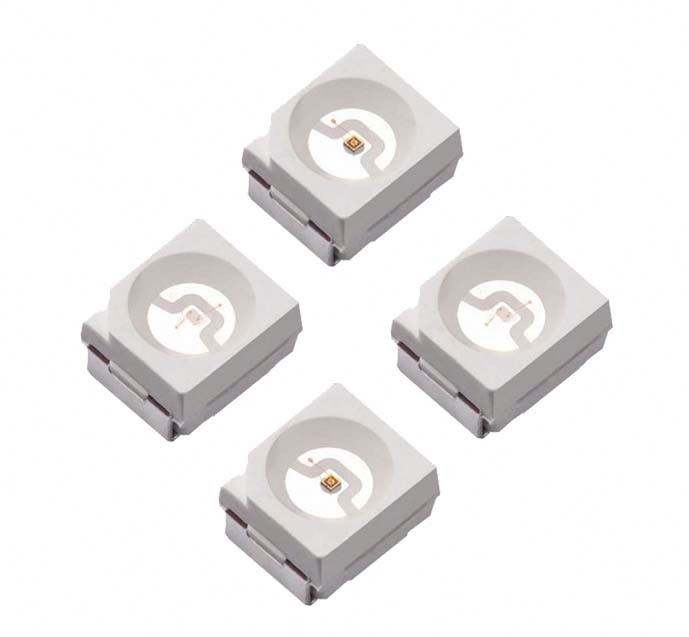

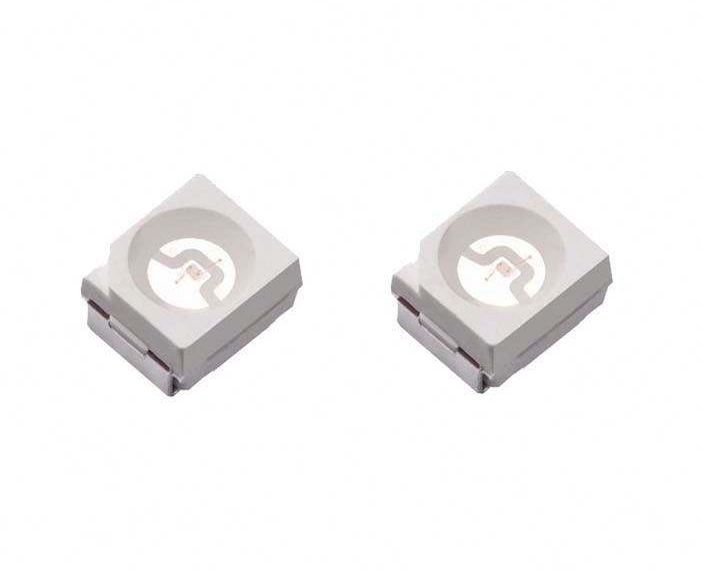

The image shows 3528 uv led of China QUEENDOM Company.

uv led,uv diode,3528 uv led,3528 uv diode,3528 uv,smd 3528 uv

3528 uv led

3528 UV LED

Dimensions: 3.5mm×2.8mm

Input voltage: 2.8V-3.2V

Input current: 20mA-300mA

LEDs power: 0.06-1W

Luminous color: 350-380nm/390-410nm

Operating temperature: -20°C to +85°C

Category: UV LED

Description

3528 uv led

OVERVIEW

3528 UV LED are an ultraviolet light emitting diode. They are a common electronic component used in many applications such as UV lighting, UV detection, and UV printing, among others. 3528 refers to its size of 3.5 mm x 2.8 mm.

3528 UV LED classification

ar ultraviolet (UV-A), medium ultraviolet (UV-B) and far ultraviolet (UV-C). UV-A has the longest wavelength (320-410 nm）

3528 UV LED:

3528 UVA LEDs: 395-400-405-410-415nm

3528 UVB LEDs: 365-370-375-380-385nm

3528 UVC LEDs: 245-320nm

PRODUCT

Table 2 : Product performance of Queendom UV LEDs at Tj=25ºC

RODUCT	RANK NO.	NOMINAL	PEAK WAVELENGTH [2] (nm		RADIOMETRIC POWER [3] (mW)		FORWARD VOLTAGE [1] (Vf)		TYPICAL DEG	TEST CURRENT (mA)	PART NUMBER
RODUCT	RANK NO.	[1] NM	MINIMUM	MAXIMUM	MINIMUM	TYPICAL	MINIMUM	MAXIMUM	2Ө 1/2	TEST CURRENT (mA)	PART NUMBER
S3528VE2WB	UVSL0801	405	400	410	20	40	2.80	4.50	120	40	8541401000UVSL0801
S3528VF2WB	UVSL0802	395	390	400	20	40	2.80	4.50	120	40	8541401000UVSL0802
S3528VE2WB	UVSL0803	385	380	390	15	40	2.80	4.50	120	40	8541401000UVSL0803
S3528VD2WB	UVSL0804	375	370	380	15	40	2.80	4.50	120	40	8541401000UVSL0804
S3528VC2WB	UVSL0805	365	360	380	15	40	2.80	4.50	120	40	8541401000UVSL0805
S3528VE2WC	UVSL0806	405	400	410	90	300	2.80	4.50	120	150	8541401000UVSL0806
S3528VF2WC	UVSL0807	395	390	400	90	190	2.80	4.50	120	150	8541401000UVSL0807
S3528E2WC	UVSL0808	385	380	390	90	190	2.80	4.50	120	150	8541401000UVSL0808
S3528VD2WC	UVSL0809	375	370	380	80	120	2.80	4.50	120	150	8541401000UVSL0809
S3528VC2WC	UVSL0810	365	360	370	80	120	2.80	4.50	120	150	8541401000UVSL0810
S3528VE2WD	UVSL0811	405	400	410	190	500	2.80	4.50	120	350	8541401000UVSL0811
S3528VF2WD	UVSL0812	395	390	400	120	300	2.80	4.50	120	350	8541401000UVSL0812
S3528VE2WD	UVSL0813	385	380	390	120	300	2.80	4.50	120	350	8541401000UVSL0813
S3528VD2WD	UVSL0814	375	370	380	80	300	2.80	4.50	120	350	8541401000UVSL0814
S3528VC2WD	UVSL0815	365	360	370	80	120	2.80	4.50	120	350	8541401000UVSL0815

FEATURES

Packaging form: SMD packaging

Main chips: CREE, Epistar, Sanan, chip materials such as gallium arsenide (GaAs), sapphire (Al2O3), etc.

Chip range: size 9*9mil -14*14 mil 20*20 mil

Package wire: The lead is made of high purity 99.99% gold wire material, such as gold (Au) or copper (Cu)

Bracket material: The materials include PCT, PPA, and EMC. ceramics

Packaging glue: silicone + resin glue

Lighting method: single color, Bi-Color, , color.

Colloidal color: water clear

Compatible with multiple voltage configurations: with multiple voltage configurations of 3V, 6V, and 12V, compatible with low-cost and high-efficiency drivers

BENEFITS

Wavelength range: 250nm – 410nm

Depending on model and operating conditions, typical values are between 100mW/cm² – 1000mW/cm²

Excellent heat dissipation design: Use low Rth materials for effective heat dissipation design to improve efficiency. Thermal color positioning ensures colors are within the ANSI bin range at 85°C.

Good color uniformity: The colored light adopts a 2.5nm binning structure to ensure excellent color uniformity.

Compatible with automatic placement equipment

Compatible with infrared and vapor phase reflow soldering processes

APPLICATION

UV curing: Curing UV ink provides high-quality printing results and dries quickly, suitable for fast production lines.
Plant growth lighting: Ultraviolet light promotes the growth and flowering of plants and can be used in plant growth lamps to provide appropriate amounts of ultraviolet light.
Wastewater treatment can provide air purification, water treatment and surface disinfection.
Wireless communication: In some communication equipment, ultraviolet LEDs are used as light-emitting devices to transmit data and signals.
Medical equipment and sterilization instruments.
Curing UV ink provides high-quality printing results and dries quickly, making it suitable for fast production lines.
