3528 Multi-Color led

3528 Multi-Color led

OVERVIEW

3528 Multi-Color LED is a surface mount model of multi-color LED light source. The size of 3528 Multi-Color LED is 3.5mm×2.8mm.

The bi color has red-green, red-blue, yellow-green, blue-green, blue-yellow, Multi- Color SMD LED: red, green, blue, RGB color combination, suitable for use on circuit boards with limited space.

PERFORMANCE

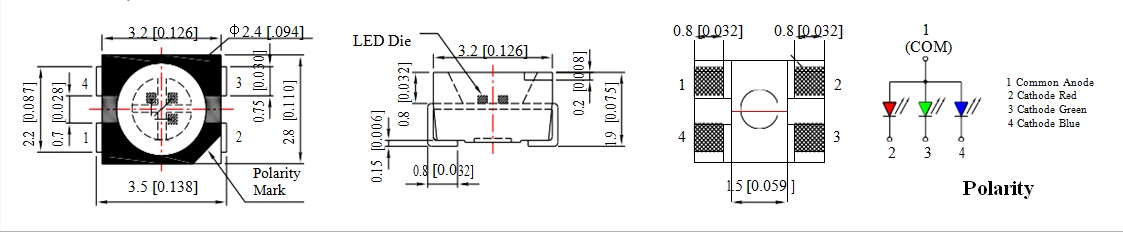

rgb led smd 3528 | 4pin Size (MM)

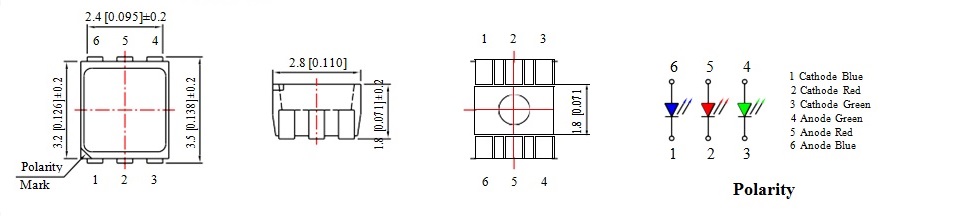

rgb led smd 3528 | 6pin Size (MM)

Table 1 Absolute maximum ratings for QUEENDOM 3528 bi color led Color Line

PRODUCT

Table 2 Product performance of QUEENDOM 3528 Multi-Color led Colors at 20mA, Tj=25ºC

FEATURES

Package form: SMD package-surface mount

Main chips: CREE, Osram, Epistar, Sanan, chip materials such as gallium arsenide (GaAs), sapphire (Al2O3), etc.

Chip range: size 9*9mil -10*16mil (commonly used: 8*8mi 9*9mil 10*10mil)

Packaging wire: High-purity 99.99% gold wire material, such as gold (Au) or copper (Cu) to ensure good conductivity and reliability.

Bracket material: pure gold-plated PCB sheet, pure silver-plated PCB sheet

Packaging glue: silicone + resin glue

Display Index: Available in 70CRI, 80CRI and 90CRI

Lighting method: two-color, RGB, color, etc.

Colloidal color: water clear, yellow, Diffused, Diffused

BENEFITS

Small size, high brightness, low attenuation, instant lighting, long life, multiple colors to choose from

Good color uniformity, colored light adopts 2.5nm binning structure,

Warm white light 200k/PIN, pure white light 500k/PIN, adopted to ensure excellent color uniformity.

Can have built-in IC or external IC, multiple color combinations to choose from

Compatible with reflow soldering, tinned pads improve solderability

bi color | Multi-Color SMD LED packaging structures are available in surface mount, flip chip and side mount welding structures.

APPLICATION

backlit display.Automotive interior.signal indication.smart home

Electronic equipment and communication equipment and other fields.

Instrument light and switch applications.Backlight application, switch signal & signal light source use
