3020 led

3020 LEDS series

Type: Table sticker SMD packaging

Size: 3.0mm x 2.0mm

Power: 0.06-0.1W

Voltage: 1.8-3.4V

Color: red yellow green blue orange

Color temperature: 3000K-15000K

Current: 20-60mA

Light efficiency: 100-115 LM/W

CRI: 70 ↑, 80, 90 CRI

Level: colorless transparency

Square: EMC PCB

Chip material: LGAP, Gaas, Gaasp, Gaalas

Chip brand: CREE, Toyota Synthetic, Osham, Sban, San’an,

Chip specification: Typical 8*10mil 10*18mil 10*20mil 10*30mil, etc.;

Angle: 120 °

Standards: Rohs, Reach, EN60471.

Work temperature: -40 ° C to +85 ° C

Category: Top-Emitting PLCC SMD LED Tag: 3020 LED

Description

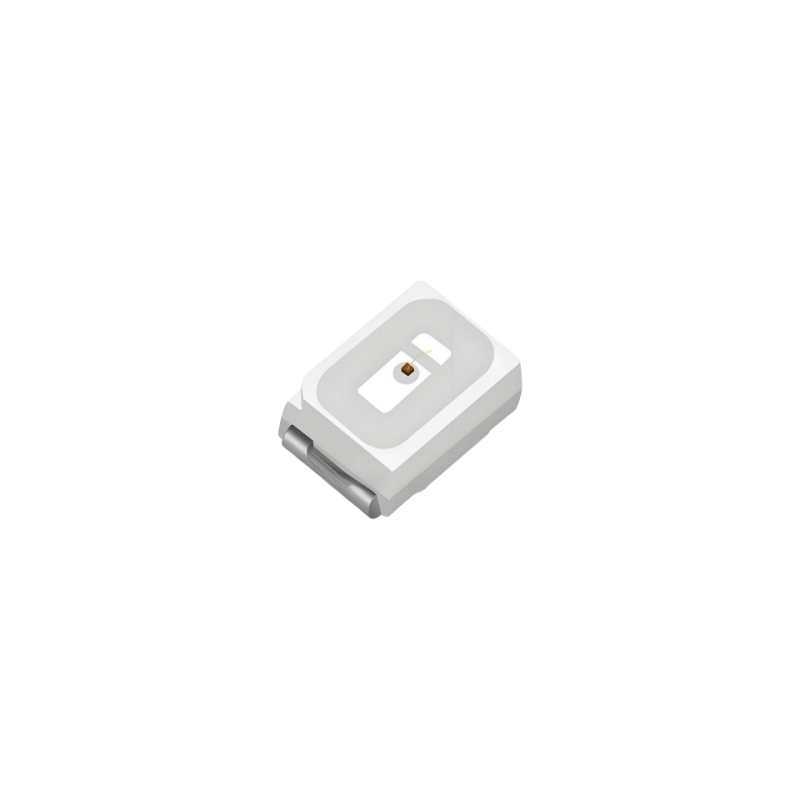

3020 Color leds

OVERVIEW&PRODUCT

Table 1 Product performance of QUEENDOM 3020 led Colors at 20mA, Tj=25ºC

RODUCT	RANK NO.	NOMINAL [1]	PEAK WAVELENGTH [2] (nm)		TYPICAL FLUX [3] (mcd)		FORWARD VOLTAGE [1] (Vf)		TYPICAL DEG	TEST CURRENT	PART NUMBER
RODUCT	RANK NO.	NM	MIN	MAX	MIN	MAX	MIN	MAX	2Ө 1/2	(mA)	PART NUMBER
S3020VC2WA	SL1211	365	360	370	15	40	2.80	4.00	120	30	8541401000UVSL0701
S3020VD2WA	SL1212	375	370	380	15	40	2.80	4.00	120	30	8541401000UVSL0702
S3020VE2WA	SL1213	385	380	390	20	40	2.80	4.00	120	20	8541401000UVSL0703
S3020VF2WA	SL1214	395	390	400	20	40	2.80	4.00	120	20	8541401000UVSL0704
S3020B02WA	SL1215	400	400	410	90	190	2.80	3.40	120	20	8541401000SL1215
S3020B12WA	SL1216	415	410	430	90	190	2.80	3.40	120	20	8541401000SL1216
S3020B52WA	SL1217	460	460	470	190	500	2.80	3.40	120	20	8541401000SL1217
S3020B62WA	SL1218	470	470	480	190	500	2.80	3.40	120	20	8541401000SL1218
S3020G02WA	SL1219	500	500	510	780	1560	2.80	3.40	120	20	8541401000SL1219
S3020G12WA	SL1220	510	510	520	780	1560	2.80	3.40	120	20	8541401000SL1220
S3020G02WA	SL1221	520	520	530	780	1560	2.80	3.40	120	20	8541401000SL1221
S3020G32WA	SL1222	530	530	540	780	1560	2.80	3.40	120	20	8541401000SL1222
S3020Y12WA	SL1223	570	570	580	25	80	1.80	2.40	120	20	8541401000SL1223
S3020Y22WA	SL1224	585	585	595	190	300	1.80	2.40	120	20	8541401000SL1224
S3020A02WA	SL1225	605	600	610	300	780	1.80	2.40	120	20	8541401000SL1225
S3020R12WA	SL1226	610	610	620	300	780	1.80	2.40	120	20	8541401000SL1226
S3020R22WA	SL1227	620	620	630	300	780	1.80	2.40	120	20	8541401000SL1227
S3020R32WA	SL1228	630	630	640	300	780	1.80	2.40	120	20	8541401000SL1228
S3020R42WA	SL1229	640	640	660	190	300	1.80	2.40	120	20	8541401000SL1229
S3020R62WA	SL1230	680	660	680	90	190	1.80	2.40	120	20	8541401000SL1230

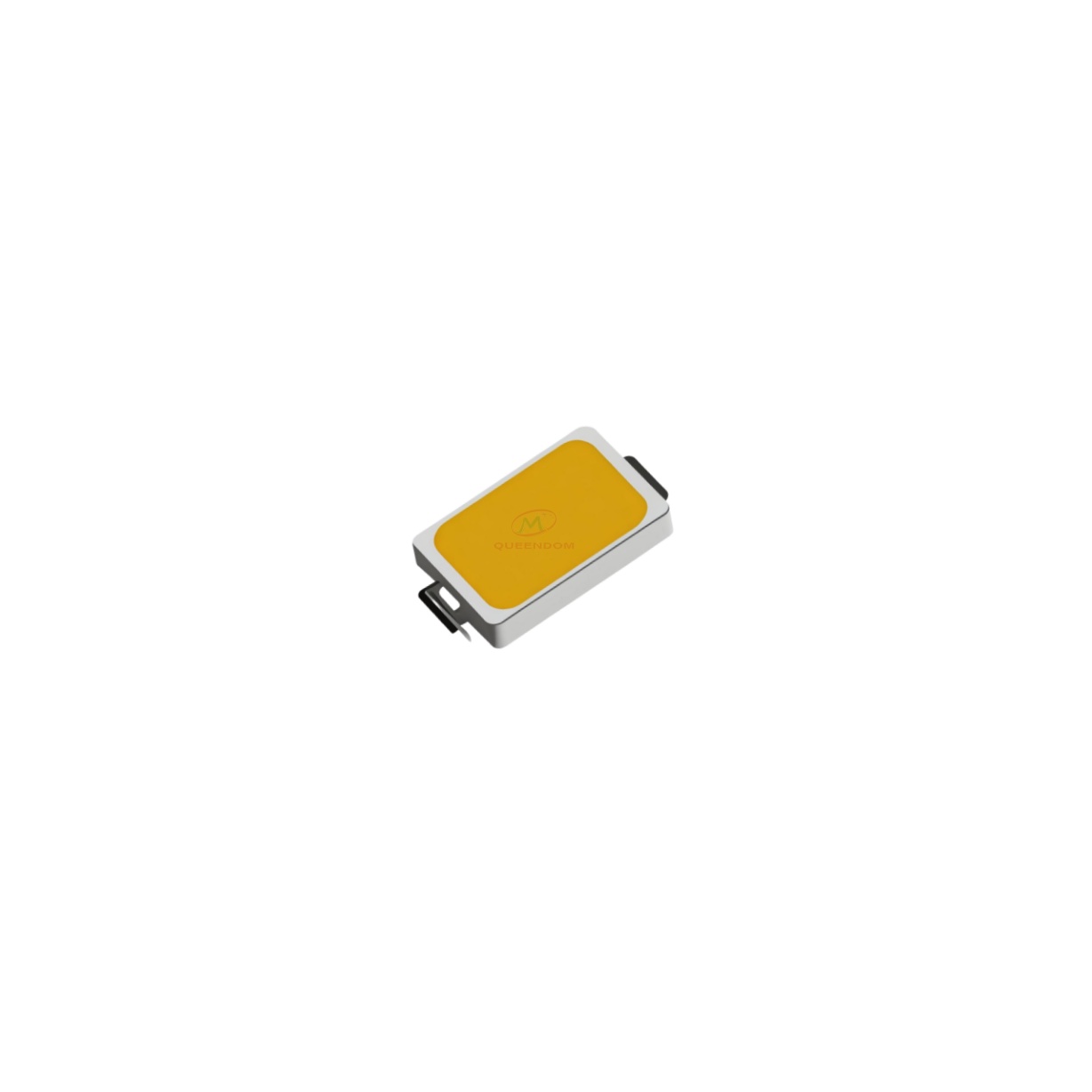

3020 white leds

Table 1 Product performance of QUEENDOM 3020 white led at 60mA, Tj=25ºC

PRODUCT	RANK NO.	TYPICAL NOMINAL	MINIMUM CRI	FORWARD VOLTAGE [3] (Vf)		TYPICAL FLUX [4] (lm)		MINIMUM EFFICACY	TYPICAL	TEST CURRENT	PART NUMBER
PRODUCT	RANK NO.	[1] CCT/K	[2] Ra	MIN	MAX	MIN	MAX	(lm/W)	2Ө 1/2	(mA)	PART NUMBER
S3020YW2WC	SL1231	2200K	80	2.7	3.2	24	30	100	120	60	8541401000SL1231
S3020WW2WC	SL1232	2700K	80	2.7	3.2	24	30	100	120	60	8541401000SL1232
S3020WV2WC	SL1233	3000K	80	2.7	3.2	24	30	110	120	60	8541401000SL1233
S3020WU2WC	SL1234	3500K	80	2.7	3.2	24	30	110	120	60	8541401000SL1234
S3020WT2WC	SL1235	4000K	80	2.7	3.2	24	30	120	120	60	8541401000SL1235
S3020WR2WC	SL1236	5000K	80	2.7	3.2	24	30	120	120	60	8541401000SL1236
S3020WQ2WC	SL1237	5700K	80	2.7	3.2	24	30	120	120	60	8541401000SL1237
S3020WP2WC	SL1238	6500K	80	2.7	3.2	24	30	110	120	60	8541401000SL1238
S3020WD2WC	SL1239	7600K	80	2.7	3.2	24	30	110	120	60	8541401000SL1239
S3020WD2WC	SL1240	10500K	80	2.7	3.2	24	30	110	120	60	8541401000SL1240

FEATURES

High brightness and light color consistency:
Low light decay and long life:
high efficiency
The energy consumption is small and the power is 0.06W, which has the characteristics of efficient energy.
High power, high light effect, large lighting area, large angle of light (such as 120 degrees), to meet a variety of lighting needs.
Strong anti -static capacity:
The product design takes into account the anti -static capacity and enhances the stability and reliability of the product.
Environmental protection and safety:
The products are encapsulated by silicone, which meets the requirements of environmentally friendly lead -free process products.
Diverse glowing color:
A variety of glowing color options, including white light, warm white, natural white, cold white, red, yellow, blue, green, green, purple, orange, pink, etc., as well as special uses such as plant growth lights and infrared transmission tubes.
Excellent material characteristics:
EMC material has the characteristics of high heat -conducting material and low thermal resistance.
Excellent temperature and weather resistance to ensure stable operation under various climate conditions.

APPLICATION

Widely used in areas such as ordinary lighting, urban lighting, automotive lighting, LCD backlight, as well as indoor lighting, commercial lighting, industrial lighting, landscape lighting and other application scenarios.
In summary, 3020 LED has characterized the characteristics of LED with its high brightness, low light aging, long life, high -efficiency energy, strong anti -static capacity, environmentally friendly and safe, diverse glowing color, excellent material characteristics, and wide application areas. An excellent product in the field of lighting.
