1608smd led | 1608 leds｜0603 led diode ｜0603 led chip

1608 infrared led｜0603 ir led | smd ir diode

0603 led

Size: 1.6mm×0.8mm
Power: 0.06W
Voltage: 1.8-3.4V
Current: 20mA
Luminous Flux: < 2500mcd
CCT: 2200K-80000K etc. CRI: 70 ↑
Color: red, orange, yellow, green, blue, purple
Operating temperature: -20°C to +85°C
RoHS.EN62471.REACH.CE

Description

0603 led

OVERVIEW

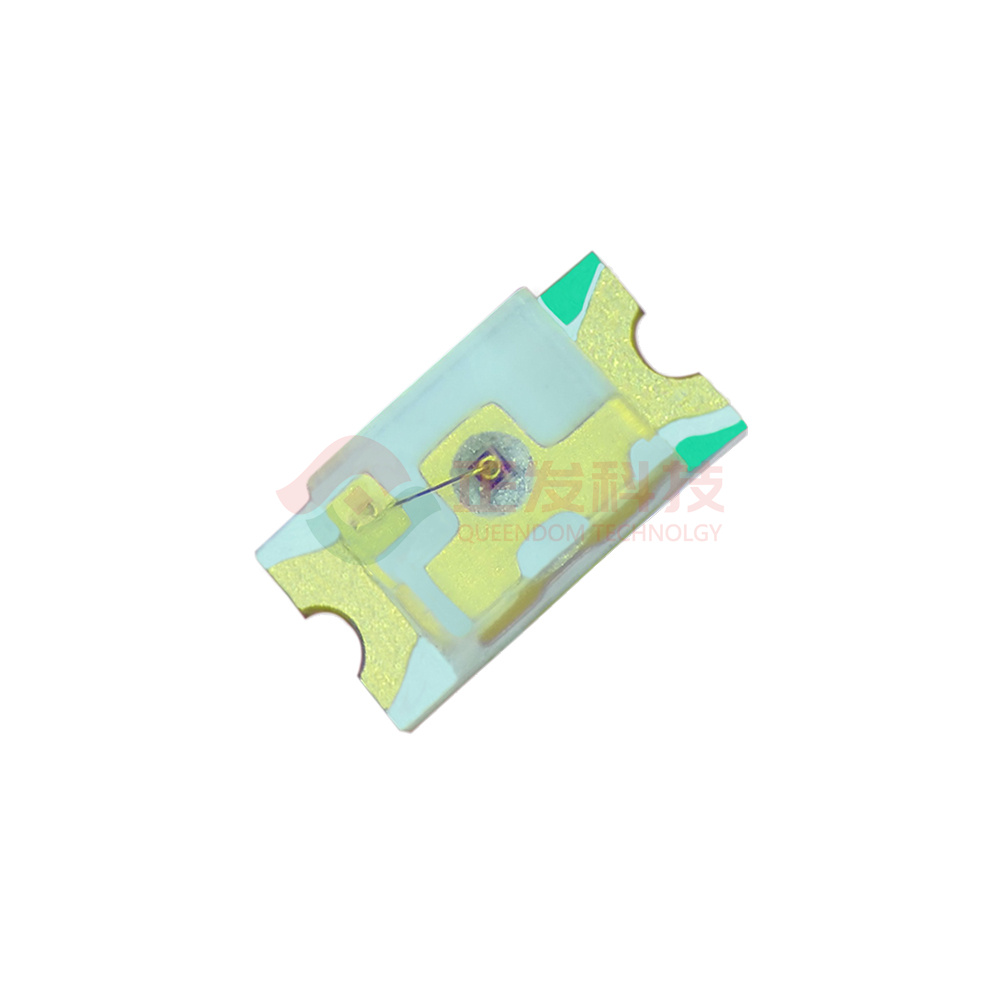

0603 led Chip SMD is a surface mount model of LED lamp. The size of 0603 LED is very small, only 0.06 inch × 0.03 inch (1.6mm × 0.8mm)Ideal for use on circuit boards with limited space.

PERFORMANCE

Table 1 Absolute maximum ratings for QUEENDOM Chip SMD Color Line

Ø Absolute Maximum Rating(At TA=25°C)	Symbol	Ratings	Units
Parameter	PD	60	mW
Continuous Forward Current	I_F	20	mA
Peak Forward Current ＊1	I_FP	100	mA
Reverse Voltage	V_R	5	V
Thermal Resistance Junction To Board	RΘ_J-B	/	°C/W
Operating Temperature Range	T_OPR	Minus 30°C To plus 60°C
Storage Temperature Range	T_STG	Minus 40°C To plus 80°C
Manual Solding Temperature	T_SOL	260°C± 10°C For 3~5 Seconds
ESD Sensitivity	ESD	2000V HBM

PRODUCT

Table 2 Product performance of QUEENDOM Chip SMD Colors at 20mA, Tj=25ºC

Product No.	Emitted Color	Power/W	Wavelenght(nm)	IF(mA) TEST	Φe(MCD/LM)	CRI	VF (V) Typ.	Reverse current	deg 2Ө 1/2	Lens Type	Part No.
Qd1608RKSA	12	0.06	620-630	20	63-160	/	1.8-2.4	≤10	120	Clear	8541401000SL19
Qd1608AKSA	12	0.06	600-610	20	80-200	/	1.8-2.4	≤10	120	Clear	8541401000SL20
Qd1608YKSA	12	0.06	584-594	20	80-200	/	1.8-2.4	≤10	120	Clear	8541401000SL21
Qd1608YGKSA	12	0.06	566-576	20	25-80	/	1.8-2.4	≤10	120	Clear	8541401000SL22
Qd1608PGKSA	12	0.06	520-530	20	320-800	/	2.8-3.6	≤10	120	Clear	8541401000SL23
Qd1608BKSA	12	0.06	464-474	20	80-200	/	2.8-3.6	≤10	120	Clear	8541401000SL24
Qd1608CWKSA	Cool white	0.06	8000-15000K	20	250-500	>Ra80	2.8-3.6	≤10	120	Clear	8541401000SL25
Qd1608PWKSA	Positive white	0.06	5000-7000K	20	500-1000	>Ra80	2.8-3.6	≤10	120	Clear	8541401000SL26
Qd1608WWKSA	Warm White	0.06	2800-3400K	20	400-800	>Ra80	2.8-3.6	≤10	120	Clear	8541401000SL27
