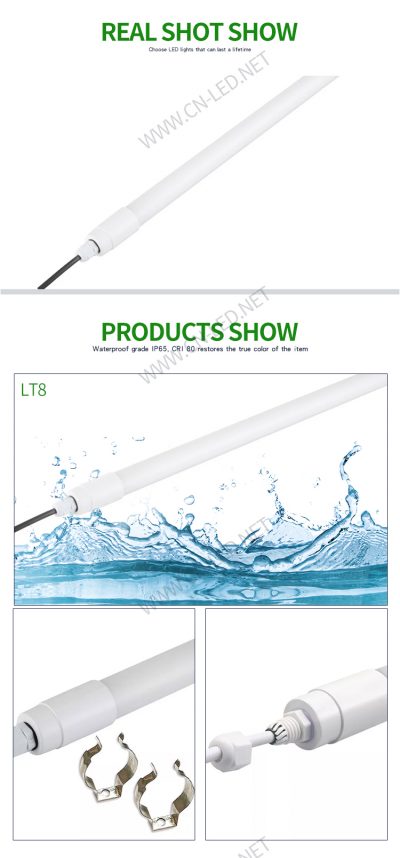

LED waterproof tube structure

The waterproof lamp tube is composed of a lamp board, a lamp housing, a waterproof component and a heat-dissipating aluminum material, and it can also be called a waterproof lamp tube. That is, the outer ring is a sealed PC tube with an aluminum strip and D-shaped aluminum material added inside.

It is mainly aimed at solving the problems of the poor heat dissipation effect of the all-plastic pipe and the single matching plug, which can improve the safety performance of the finished product to a certain extent, and can use the aluminum structure to reduce the formation of plastic pipes after long-term lighting temperature rises. the camber.

At present, the outer shell of the lamp tube can be made into a full diffuser tube, a fully transparent tube, a blue-backed two-color tube, a white-backed two-color tube, and the waterproof lamp shell kit covers T5, T6, T8, T10, T12 and other series of products ,

Because aluminum is added, it is equivalent to a tube in a tube. Customers can choose different diameters, circuit board specifications, and lighting angles according to their needs. And our company’s waterproof lamp shell

Screw holes are designed on the aluminum material, which can be matched with various LED plugs provided by our company. At present, the shell of the lamp tube is widely used in LED waterproof tube.

1. Product Features

LED LED waterproof tube, high brightness and high color rendering index, soft light, easy installation, appearance and size are the same as traditional integrated brackets, and can be directly replaced by traditional integrated brackets;

The radiator is made of aluminum alloy with high thermal conductivity to ensure the product can effectively dissipate heat, ensure the stability and long life of the product, and the appearance is exquisite and beautiful;

Energy saving and environmental protection, high efficiency, low carbon, no ultraviolet rays, no glare.

Using LED light source, long life, low power consumption, durable

Adopt amorphous, odorless, non-toxic and highly transparent PC thermoplastic engineering plastics, which have excellent physical and mechanical properties and can be used for a long time at low temperature.

The circuit board adopts a full glass fiber circuit board with low water absorption and good moisture resistance, with a thickness of 1.2mm, which can dissipate heat quickly and is not easy to break.

The structure of the lamp body is made of waterproof stainless steel screws, filled with excellent performance sealant, the outer layer is tightly wrapped with waterproof silicone sleeve, double-layer waterproof, and the protection level reaches IP65/IP67.

LED waterproof tube has high brightness and high color rendering index, soft light, easy installation, the same appearance and size as the traditional integrated bracket, and can be directly replaced by the traditional integrated bracket



2. Product description

Specifications and models: T5 LED waterproof tube, T6 LED waterproof tube, T8 LED waterproof tube, etc.

Light source chip: Epistar 2835 LED lamp beads are light, which can save 80% energy than incandescent lamps.

Lamp bead brand: Philips, Osram, Hongli=

Service life: up to 50000 hours service life

Input voltage: AC100-240V 50/60HZ

Protection level: filled with high-quality performance sealed waterproof silicone, the outer layer is tightly wrapped with waterproof silicone sleeve, using transparent AB glue, protection level IP65/IP67

Heat dissipation solution: the circuit board adopts a full glass fiber circuit board with low water absorption and good moisture resistance, with a thickness of 1.2mm and fast heat dissipation

Shell material: PC, aluminum, PC+aluminum, all-plastic thermoplastic engineering plastic [Waterproof type is usually the best solution with all-plastic priority] IP67 waterproof lamps can effectively protect the farm when cleaning the farm.

The lamp tube avoids water ingress. The special all-plastic PC tube can resist cleaning chemicals, especially ammonia, and achieve the effect of anti-oxidation and aging.

Light transmission performance: The light transmittance of the transparent PC cover is 94-96%, and the light diffusion large stripe PC cover has a light transmittance of 90-92%. Light diffusion PC cover light transmittance 85-88%

Flame retardant grade: PC cover Flame retardant grade: 94-V2 or 94-V0

Energy saving and environmental protection: high efficiency, low carbon, no ultraviolet rays and energy savin

g of 60%. The LED light source has a long service life and low power consumption, and is durable. Odorless, non-toxic PC plastic, with excellent physical properties, can work at low temperature for a long time

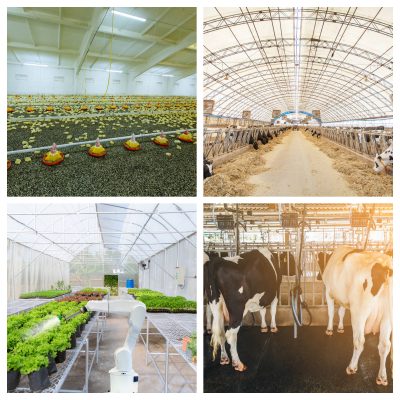

3. Scope of application

Application fields: Mainly used in chicken farms, pig houses, chicken houses, poultry farms, etc. Planting plants, planting plants, fish tanks, fresh food, beverages, refrigerators, freezers, or indoor and outdoor humid areas, etc.

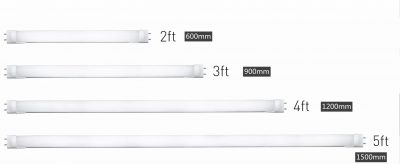

4. Product size

L1: 586mm, 1196mm, 1496mm L2: 605mm, 1215mm, 1515mm
